High security anti-climb fencing system for oil and gas services project, covering anti-climb 358 mesh in yellow color, hot galvanised boat fence, and double coil galvanised razor concertina wires.

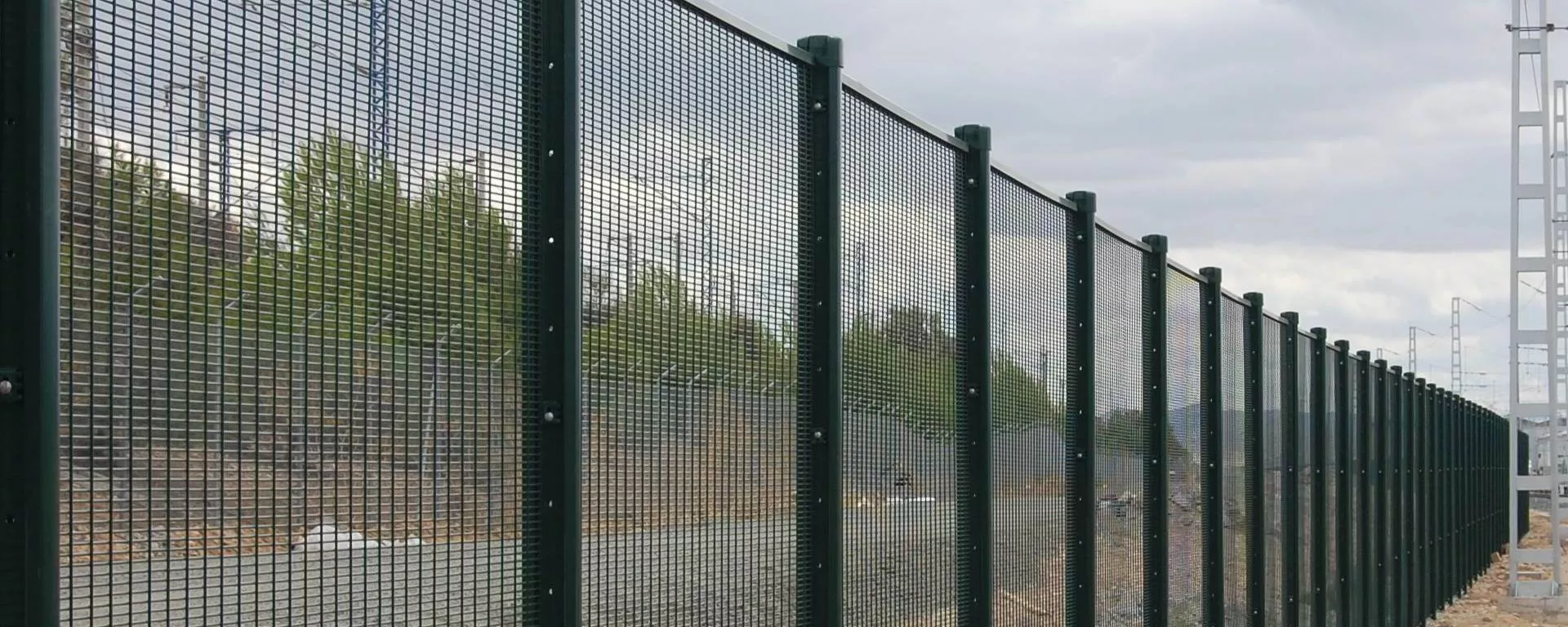

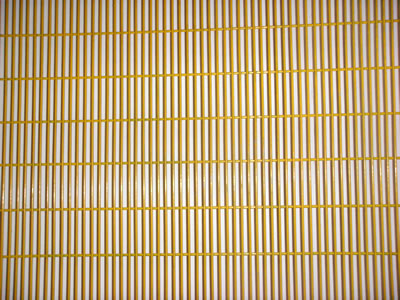

Anti-Climb fence 358

• Fence panel material: low carbon steel rod.

• Surface treatment: hot galvanized to be painted final color yellow.

• Fence post material: carbon steel hod-dipped galvanized tube.

• Surface treatment: to be painted final color yellow.

• Qty: 2000 m².

Boat fence

• Descriptions: clamped on the pillar of the two upper floors of the ladder of the boat landing.

• To be painted system final color orange (RAL 2011).

• Using 15000 around 3 m² of grating.

• Fence panel material: low carbon steel rod.

• Surface treatment: hot galvanized.

• Fence post material: carbon steel hod-dipped galvanized tube.

• Qty: 1000 m².

•

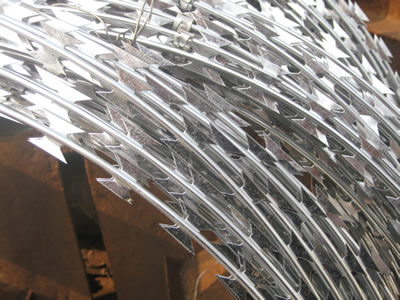

• Razor wire:

• 30 in. double coil concertina.

• Barbed tape material: 430 ss 0.025 in. thick.

• Core-wire material 0.098 galvanized steel class III.

• Barb clusters per loop: 43 in.

• Coil loops: 31.

• Coil loop spacing: 1 inch.

• Attachment points: 3.

• Qty: 2000 m.

36 inch diameter galvanized concertina wire:

• Diameter of the wire must be equal to or nearly equal to 609 mm.

• The wire must be hot dip galvanized and zinc coated.

• Blade style should be BTO-18, with wire thickness of 0.5 mm, wire diameter of 2.5 mm, barb length of 15 mm and barb spacing of 33 mm or equivalent.

12 inch diameter galvanized concertina wire:

• Diameter of the wire must be equal to or nearly equal to 609 mm.

• The wire must be hot dip galvanized and zinc coated.

• Blade style should be BTO-18, with wire thickness of 0.5 mm, wire diameter of 2.5 mm, barb length of 15 mm and barb spacing of 33 mm or equivalent.
