A HEIGHT: 2400mm / 2700mm / 3000mm
B WIDTH: 2500mm
C WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm
D MESH SIZE: 100mm*50mm / 150mm*50mm / 200mm*50mm
E POST: Square Post (60mm*60mm)
F CLAMP: Anti-UV Plastic Clamp / Metal Clamp
GV-ARM: 500mm*500mm
H RAZOR WIRE: Dia 500mm BTO-22
I POST CAP: Metal Cap / Anti-UV Plastic Cap
S SURFACE: Hot Dipped Galvanized (505g/m²)
Electric Galvanized + Polyester Powder Coated (All colors in Ral)
Height: the height of the airport fence, measure from ground to the top point of razor wire.
Width: the horizontal distance of airport fence, measure from center to center of the square post.

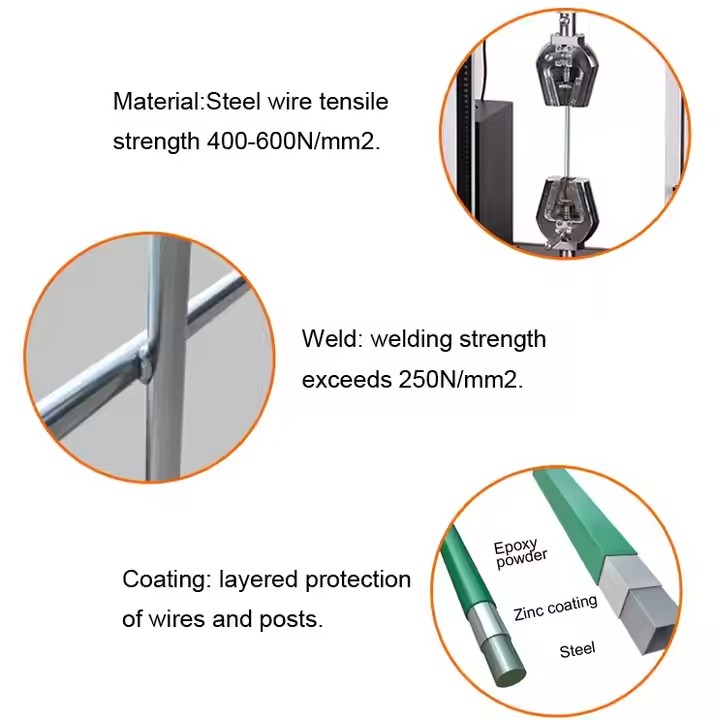

Wire Thickness: diameter of the low carbon steel wire of airport fence panel.
Mesh Size: the horizontal and vertical length of airport fence panel mesh.
Y Shape Post: a V shape post welded on the main post, for setting up the V panel and razor wire on top.
Clamp: special anti-UV plastic clamp for setting up the airport fence panel and post.
Hot Dipped Galvanized: dip the airport fence fence in to a container which is full of liquid zinc, to prevent the airport fence panels from getting rusty.
Electric Galvanized + Polyester Powder Coated: electric galvanized (zinc coating 8~12g) as a pre – surface treatment inside, polyester powder layer outside, to prevent the airport fence panels from getting rusty.

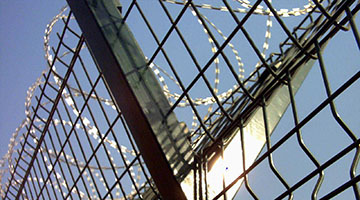

The height of the airport fence is higher than the usual wire mesh fence, because of the razor wire on the top. If the fence panel height is 2m, the outside diameter of the concertina razor wire is 500mm, and there is a little space between the razor wire and the top of the fence panel is around 200mm, so add all together the airport fence can reach 2.7m. It is quite high for people to climb over.

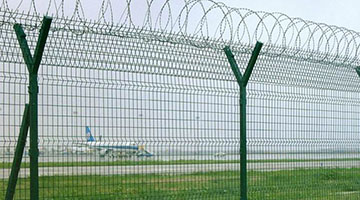

The airport fence is very strong with the widely used specification. The wire thickness can up to 6.0mm, you can also pick a strong post to match the panel. What’s more, plus the concertina razor wire on the top, it makes the airport fencing difficult to intrude.

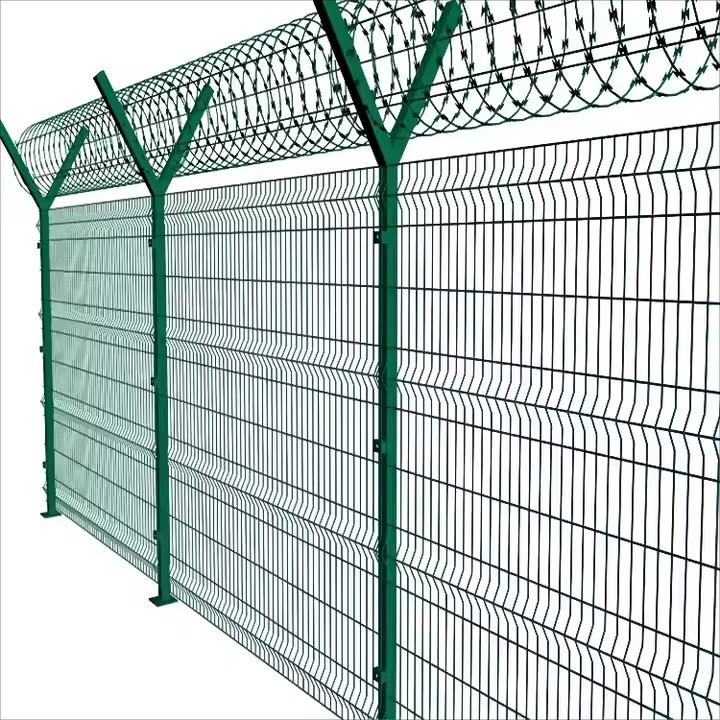

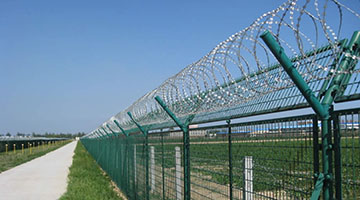

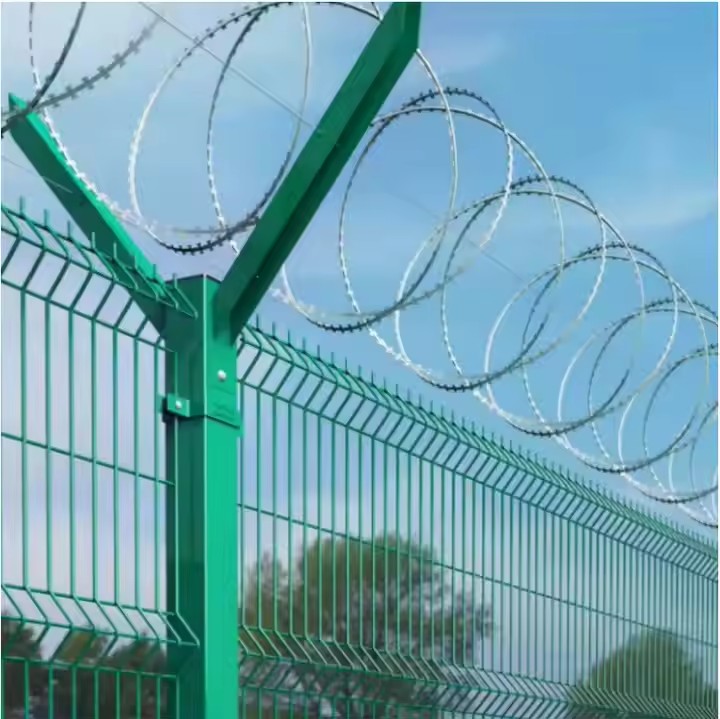

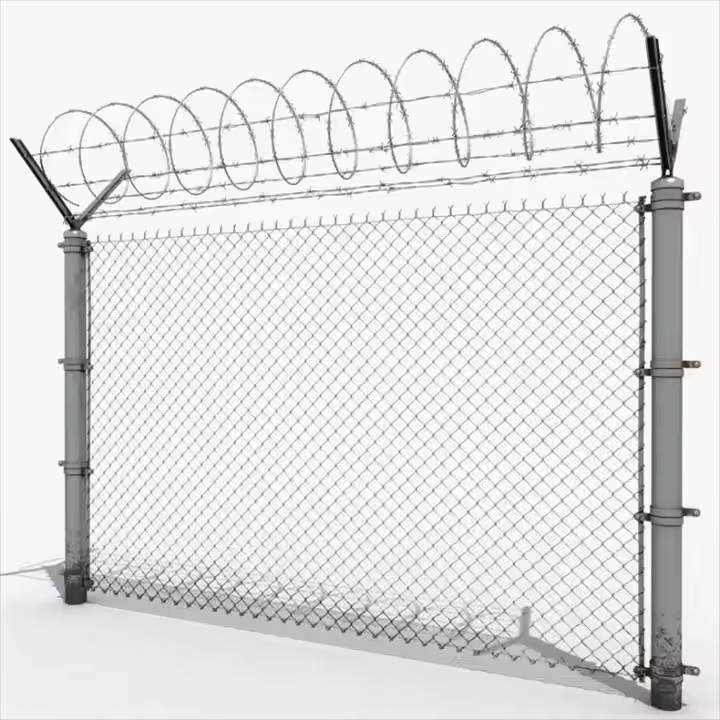

One obvious feature of the airport fence is the V arm and concertina razor wire on the top. To weld the V arm on the usual post, it makes the fence higher and it also can put the razor wire inside. Add the concertina razor wire on the top makes the airport perimeter fence higher security and stronger. So if you find the high security and hard to intrude fence, then the airport fence must be the better of the best.
