PALISADE FENCING – PROMAX SECURITY FENCING

Protective manufacture and supply palisade fencing materials based on traditional specifications using pencil point TFB

posts and 150UB 14.0 posts and standard 50x50x6 rails. All W pales are of a BS17222 approved design and comply with

all the strength requirements specified in TGM Rail positions have been standardised and positioned for greatest security

for 2 and 3 rail fences. Other rail positions can supplied to match existing installations. Standard Promax pale centres have

been determined by the current Railcorp specification of max 80mm between pales.

Rails with pale centres to suit the wider BS172212 specified centres of 155mm are also available upon request. Protective

offer an advisory, material scheduling and estimating service on a project by project basis.

A powder coating service is available from Protective’s in house powdercoating plant. Protective is an approved applicator

of Interpon D1000 powder over porous substrates such as hot dip galvanised steel and can also offer higher specification

finishes for specific requirements.

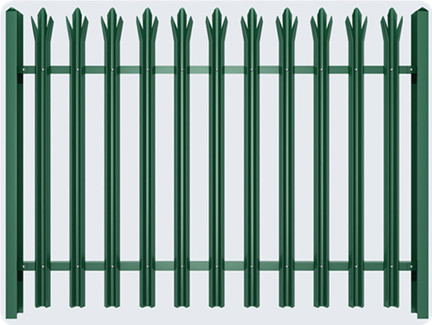

PALISADE FENCE SPECIFICATIONS

• Post: 2400 High fence – 100×55 ProPale Posts RSJ

• Post: 3000 High Fence – 150 UB 14.0

• Rail: 50x50x6 EA

• Fish Plate: 40×8 140 long

• Corner Fish Plate: 40×8 215 long W Profile

• ‘W’ Pale: 71x21x3 W Profile

• Rail Fixings: M12x30 Cuphead Bolt and Shear Nut

• Pale Fixings: M8x25 T Bolt and Shear Nut or – Stainless Steel Huck Pin and Collar

• Mid Bay Support: M12x500 Threaded Rod and 2 x Nuts

RAILS

RAILS – HOT DIP GALVANISED

Palisade fence rails are available to suit specific specifications also available upon request, all rails include hole for Mid Bay Support – Earth holes if required optional.

RAILS PP REA50506G SPECIFICATIONS

• Size – 50X50X6 EA

• Length: 2640

• Pale Centres: 150

• Weight: 12.7Kg

RAILS PP REA502705G SPECIFICATIONS

• Size – 50X50X6 EA

• Length: 2705

• Pale Centres: 155

• Weight: 13.0Kg

POSTS

POSTS – HOT DIP GALVANISED

Palisade fence posts to suit other height fences, different embedment lengths or baseplated available upon request, and

earth tag plates are optional.

POSTS PP TFB 3300 G SPECIFICATIONS

• Fence Height: 2400

• Post: 100×55 ProPale Posts RSJ

• Rails: 2

• Length: 3300

• Weight: 25.4Kg

POSTS PP TFB 3300 G SPECIFICATIONS

• Fence Height: 3000

• Post: 150UB 14.0

• Rails: 3

• Length: 4000

• Weight: 58.0Kg

PALES

PALES – W SECTION – HOT DIP GALVANISED

Palisade fence pales to suit other height fences or special rails centres available upon request.

PALES PP PALE 2400 G SPECIFICATIONS

• Fence Height – 2400

• Type: STRAIGHT

• Top: TRI POINT

• Length: 2350

• Weight: 5.64Kg

PALES PP PALE 2950 HDG SPECIFICATIONS

• Fence Height – 3000

• Type: STRAIGHT

• Top: TRI POINT

• Length: 2950

• Weight: 7.07Kg

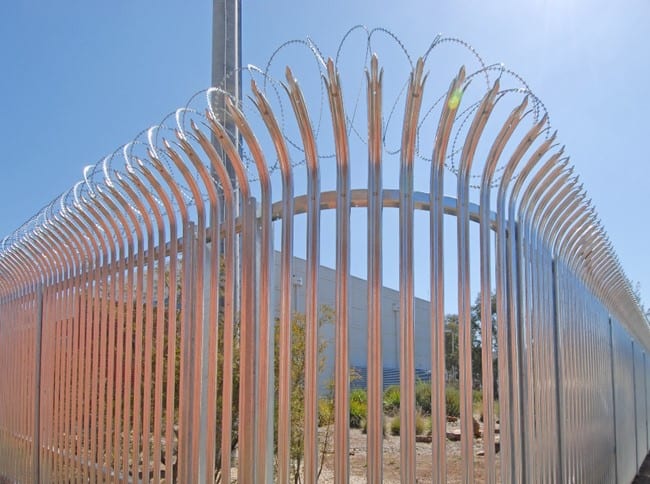

PALES PP PALE 2950 CG SPECIFICATIONS

• Fence Height – 3000

• Type: CURVED

• Top: TRI POINT

• Length: 2350

• Weight: 7.28Kg

FITTINGS & ACCESSORIES

GATES – HOT DIP GALVANISED

Palisade fence gates to match fence height and customer specifications available and priced accordingly. Single PA gates

are made as a post, gate and lock assembly and installed as one unit. Double gates are supplied with posts, gates, hinges

and locks.

FISHPLATES

Fishplates Specifications – available upon request or download brochure

MID BAY SUPPORT

Mid Bay Support specifications available upon request or download brochure

FASTENERS

Fastener specifications available upon request or download brochure
