Welded Wire Mesh
Welded Wire Mesh Roll /hardware wire cloth

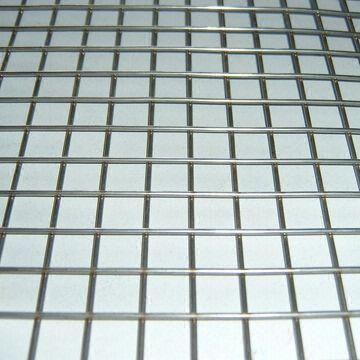

Welded wire mesh roll is processed by high quality raw materials, with smooth mesh surface, uniform mesh, firm solder joints, better visual brightness, good local machining performance, stability, corrosion resistance and corrosion resistance; Welded wire mesh roll is more Acid and alkali resistance are widely used in industry, agriculture, aquaculture, construction, transportation, mining and so on. Such as machine guards, animal fences, flower fences, window guards, channel fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations
.
We offer a wide range of galvanized or PVC-coated welded wire mesh rolls which are ideal for fencing. These welded mesh rolls are commonly used as garden fencing or agricultural field and border fencing. The strong wire is able to enclose and protect animals and livestock as well as restrict access. Our mesh is supplied in a range of different heights, lengths, gauges and hole sizes, ensuring that we have something that will fit a wide range of applications.
Both our galvanized and PVC-coated welded mesh rolls are treated and fully protected against rust and corrosion. The wire is hot-dipped galvanized before welding to ensure complete coverage and protection, with the PVC-coated option being galvanized as well as coated in a smooth green plastic.

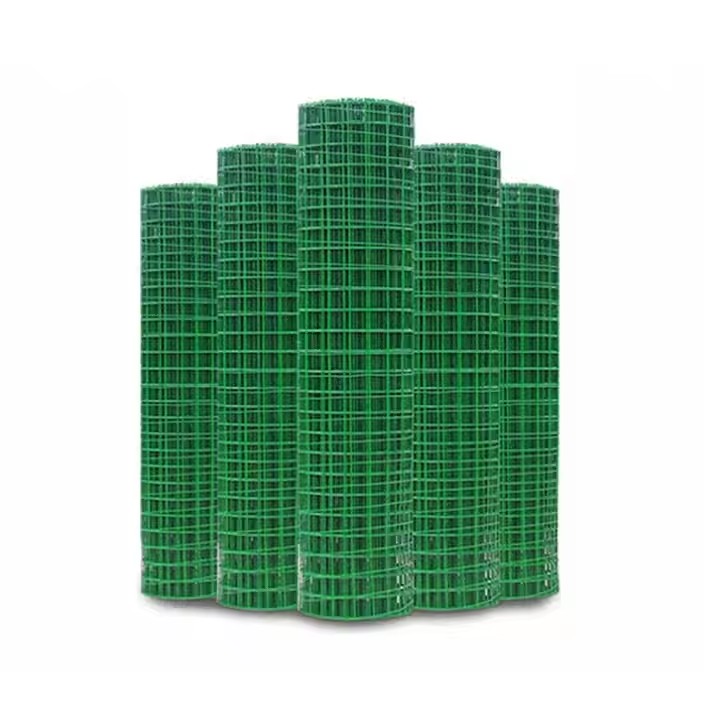

PVC-coated welded wire mesh are particularly ideal for use around children and animals as the plastic coating ensures there are no sharp barbs that could cause harm which are left over from galvanization.
Advantage:
● Provided as a roll for easier transport – simply unroll and cut as required
● Galvanized with a zinc coating to give it a longer life against the elements
● Resistant to corrosion and rust
● Welded at each mesh join to ensure it is strong, long-lasting and secure
● Available with a galvanized steel finish or PVC-coated finish or stainless steel wire welded
Surface finishing:
Electro galvanized
Hot dipped galvanized
PVC coated
Stainless steel wire
Hole sizes explained:

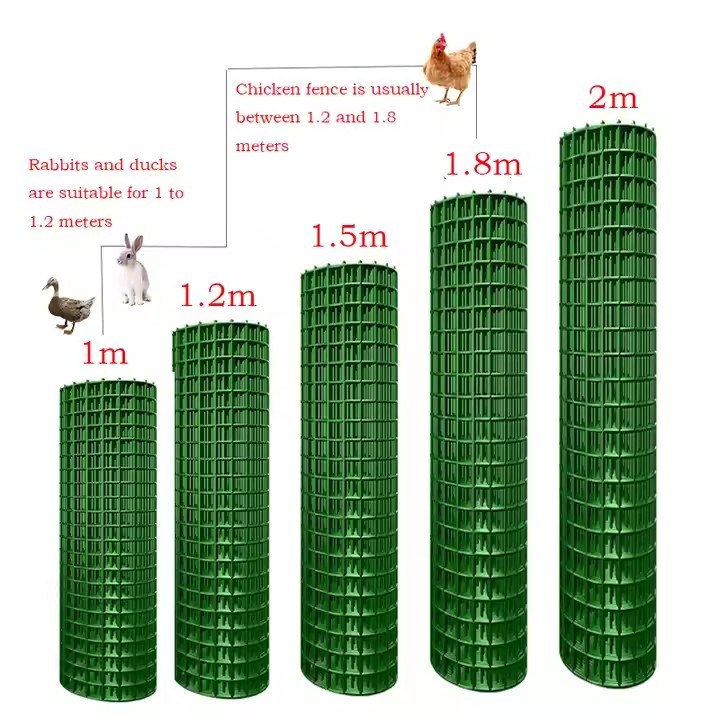

25.4mm is 1” holes are perfect for small animal’s enclosures, hutches, cages, chicken coops and rabbit runs
50.8mm is 2” holes are perfect for creating fencing for larger animals such as dogs.
| Opening | Wire Diameter BWG | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15 |
| 2” x 4" | 50.8mm x 101.6mm | 12,13,14,15 |
| 4” x 4" | 101.6mm x 101.6mm | 12,13,14,15 |
| 4” x 6" | 101.6mm x 152.4mm | 12,13,14,15 |
| 6” x 6" | 152.4mm x 152.4mm | 12,13,14,15 |
| 6” x 8" | 152.4mm x 203.2mm | 12,13,14 |

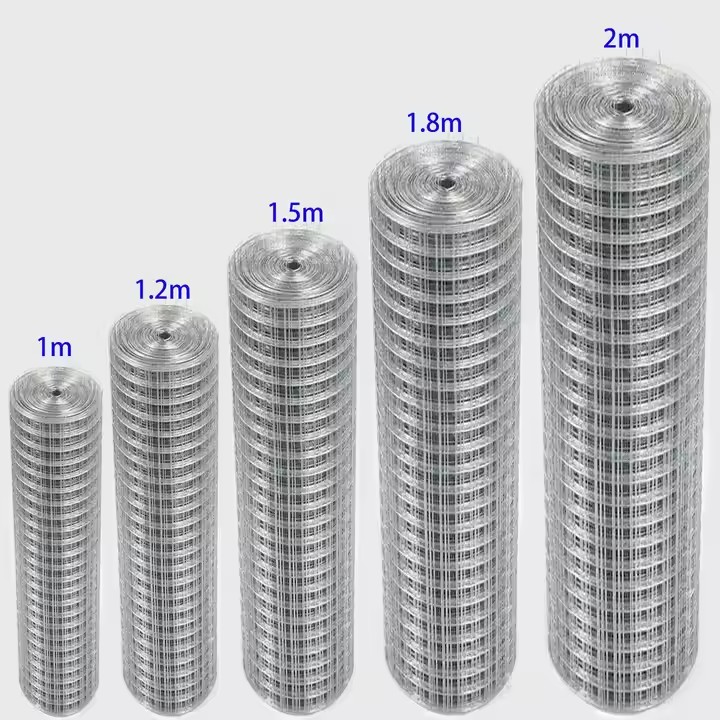

Roll Width from 0.4M to 2M, Roll length, 5M,10M,30M,50M.etc Material: Galvanized, PVC coating, Stainless steel wire | ||
