USA Hot Selling 12 ft Heavy duty Livestock panel Fence / Horse corral panels
Product Description

USA Hot Selling 12 ft Heavy duty Livestock panel Fence / Horse corral panels

cattle panel are also known as stockyard, cattle yard, cattle panel, house fence, sheep fence, livestock fencing. Cattle fence is made of square, oval or round tube, it is mainly used as portable or permanent fencing. The fence panels are offered in a variety of heights, lengths, and number of rails.The fence panels are appealing, safe, easy to install.
Cattle Corral panels are more and more popular in enclosing and rising cattle. They are tough, strong and portable to be set up easily for several years.
These cattle corral panels are widely used in the round pens, paddock and farm.
Hot dipped surface supplies long service life and bright colors.
60”, 62”, 66” and 72” tall panels options satisfy all your needs. 5 or 6 horizontal bars protect cattle in the pens and paddocks.
This type cattle corral panel is popular in American livestock products markets.
Different rail tube type and quantities satisfy all your different needs.                   inqury us ！

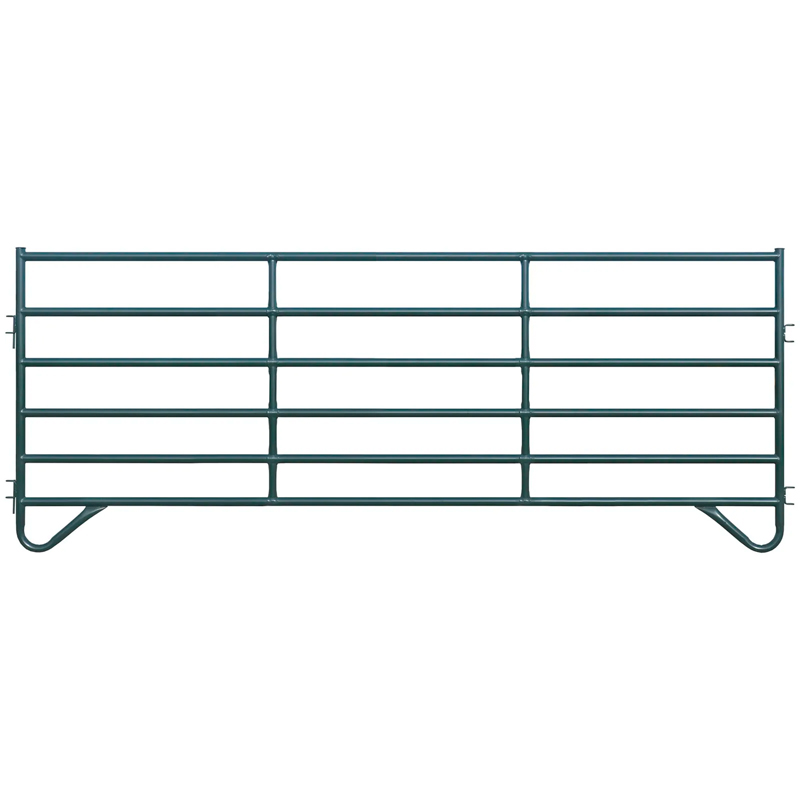

Products detail
Product Specification
specification of corral panels
Item
Panel Height
Panel Length
Tube Size(round)
Tube thickness
USCP-01
60”
8’/10’/12’/14’/16’
1-3/4” or 2”
14, 16 and 18 gauge
USCP-02
62”
8’/10’/12’/14’/16’
1-3/4” or 2”
14, 16 and 18 gauge
USCP-03
66”
8’/10’/12’/14’/16’
1-3/4” or 2”
14, 16 and 18 gauge
USCP-04
72”
8’/10’/12’/14’/16’
1-3/4” or 2”
14, 16 and 18 gauge
USCP-05
84”
8’/10’/12’/14’/16’
1-3/4” or 2”
14, 16 and 18 gauge

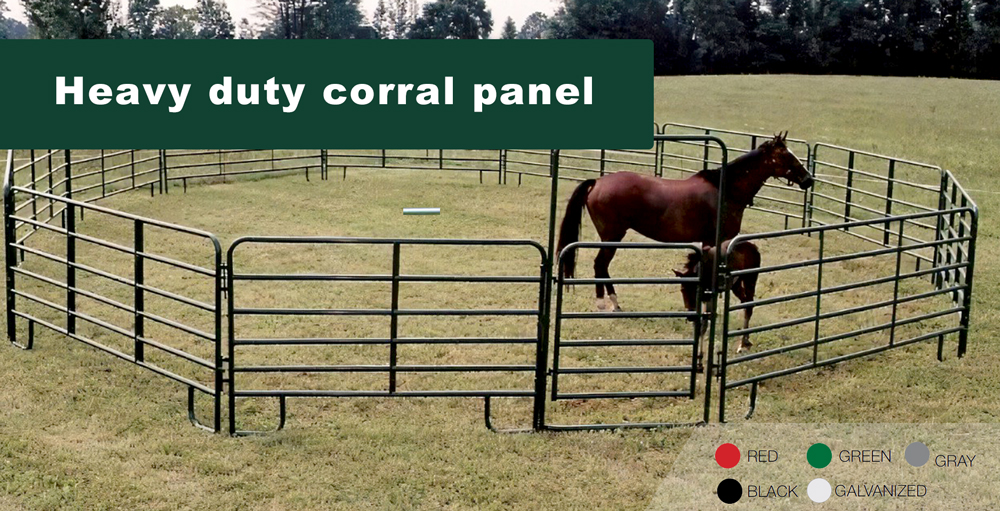

Heavy Duty corral panel
Corral Panels
• Rugged 2" dia. tube
• Hefty 16 & 18 gauge steel
• Powder Coat, Galvanized or
Hot-Dipped Galvanized Finish
• Heavy-duty 2" diameter arch
gates, entrance panels and
inverted arches
Gates
• Rugged 2" dia. tube
• Hefty 14 or 16 gauge steel
• Powder Coat, Galvanized or
Hot-Dipped Galvanized Finish
Medium Duty corral panel
Corral Panels
• Rugged 2" & 1-5/8" dia. tube
• 16 & 18 gauge steel
• Powder Coat or Galvanized
Finish
• Medium-duty 1-5/8" dia.
entrance panels & arch gates
Gates
• Rugged 1-5/8" dia. tube
• Heavy 16 & 18 gauge steel
• Resilient Powder Coated or
Galvanized Finish
Utility corral panel
Corral Panels
• Utility 1-5/8" dia. tube
• Utility 18/20 gauge steel
• Resilient Powder Coated
or Galvanized Finish
Gates
• Utility 1-5/8" dia. tubes
• Utility 20 gauge steel
• Resilient Powder Coated
or Galvanized Finish

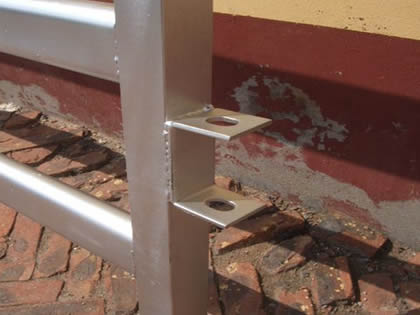

Accessories:4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel
Material ：Hot-dip galvanized Steel Pipe or Square Tube
Finish：Galvanized or Powder coating（green, gary, black, red）

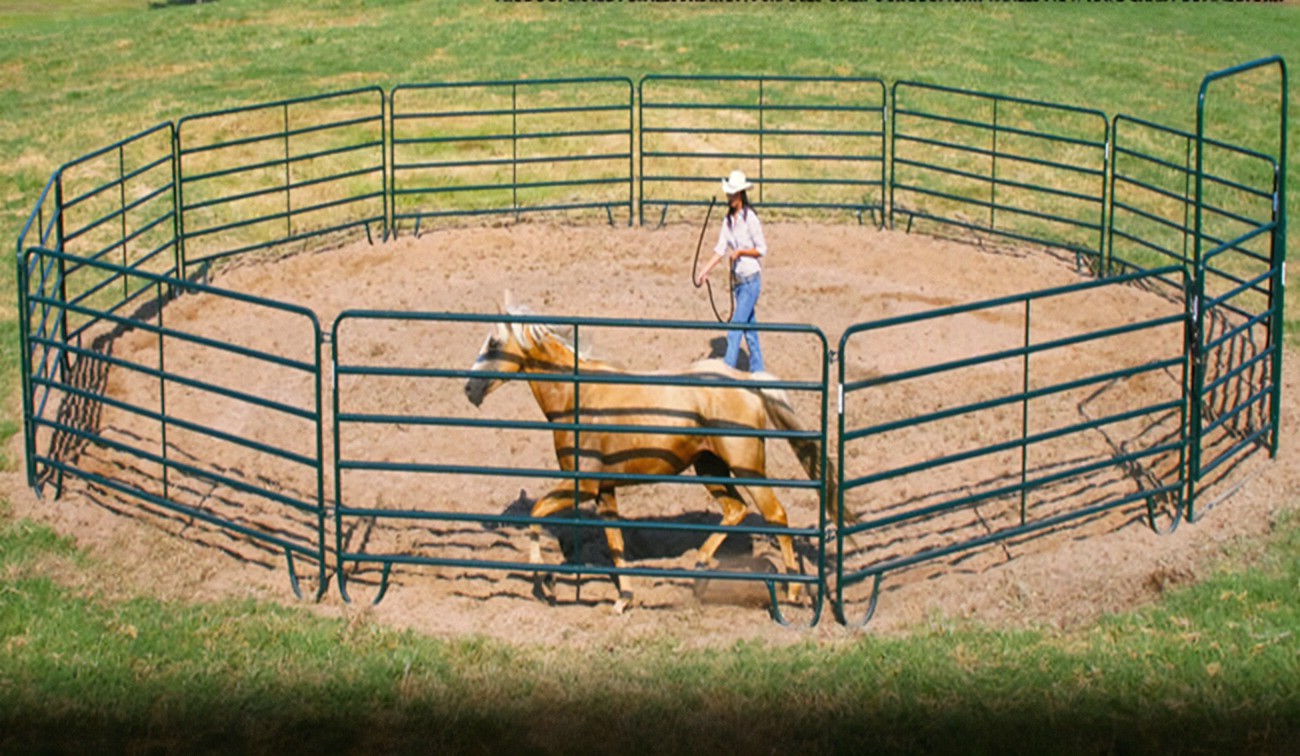

Round Pens 5’ Tall
Round Pens 6’ Tall
40’ Diameter (12-10’ Panels and 1-5’ Gate) 6 Bar
40’ Diameter (10-12’ Panels and 1-5’ Gate) 6 Bar
50’ Diameter (15-10’ Panels and 1-5’ Gate) 6 Bar
50’ Diameter (13-12’ Panels and 1-5’ Gate) 6 Bar
60’ Diameter (18-10’ Panels and 1-5’ Gate) 6 Bar
60’ Diameter (15-12’ Panels and 1-5’ Gate) 6 Bar
40’ Diameter (12-10’ Panels and 1-5’ Gate) 7 Bar
40’ Diameter (10-12’ Panels and 1-5’ Gate) 7 Bar
50’ Diameter (15-10’ Panels and 1-5’ Gate) 7 Bar
50’ Diameter (13-12’ Panels and 1-5’ Gate) 7 Bar
60’ Diameter (18-10’ Panels and 1-5’ Gate) 7 Bar
60’ Diameter (15-12’ Panels and 1-5’ Gate) 7 Bar

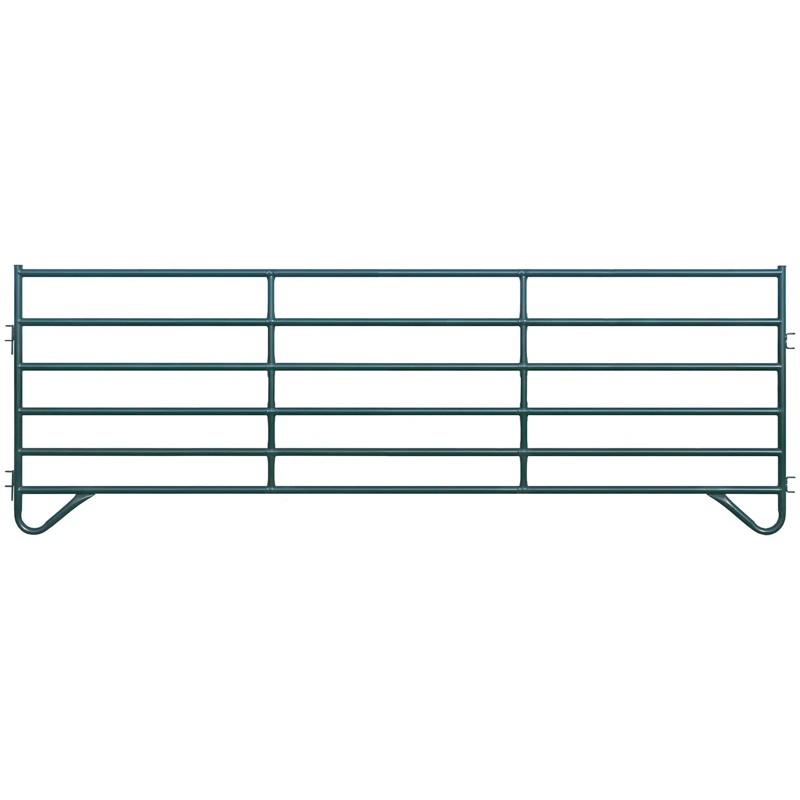

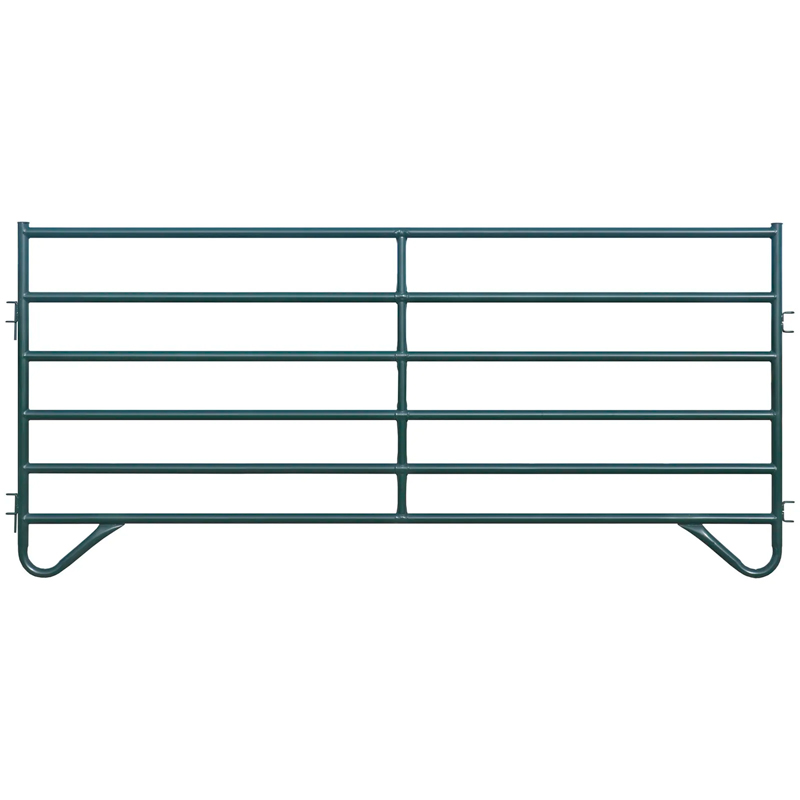

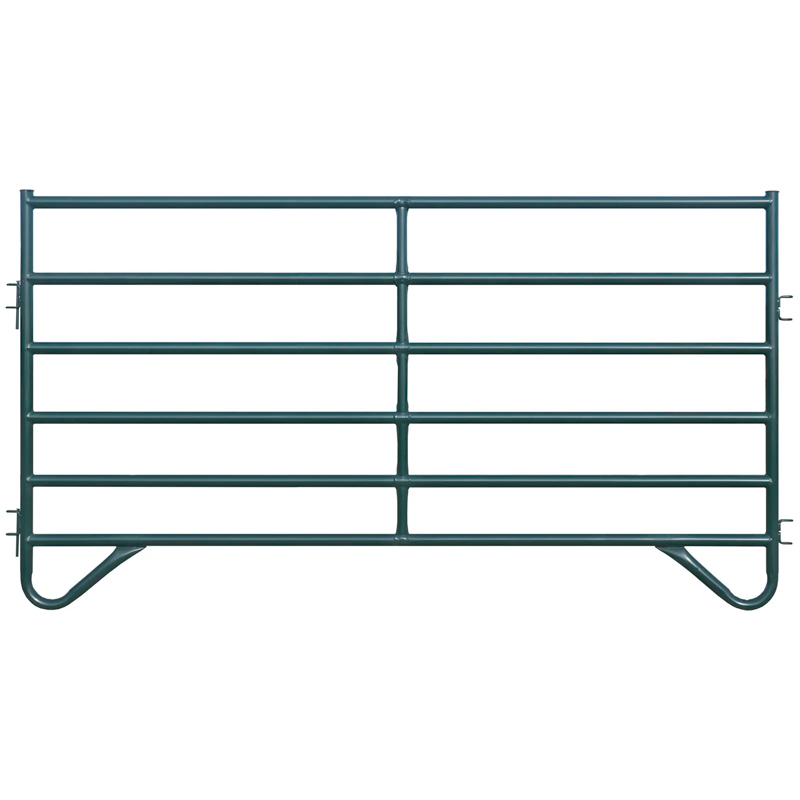

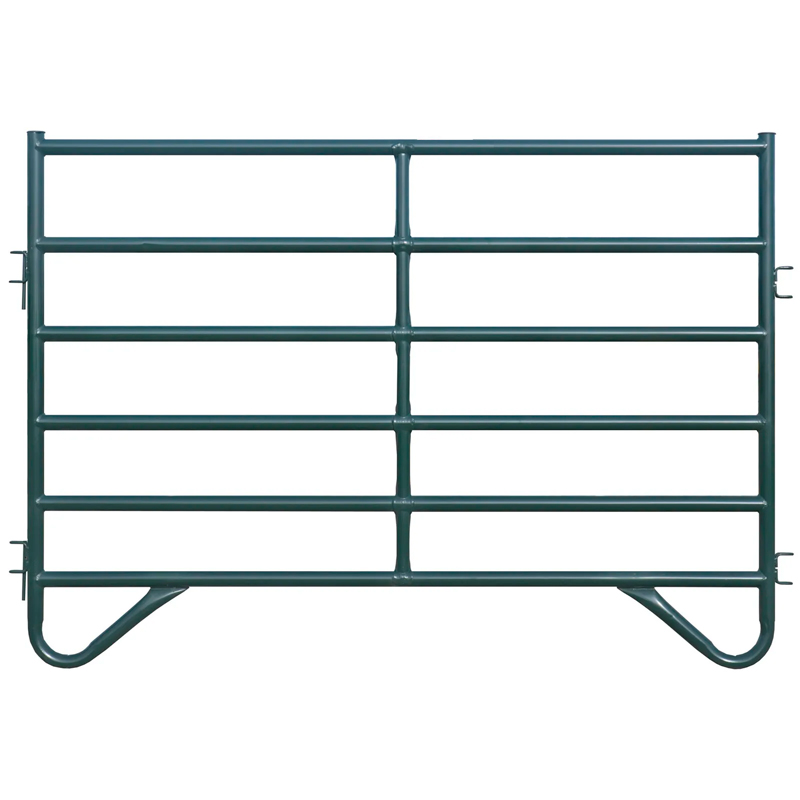

Most popular size
8ft corral panel
10ft corral panel
12ft corral panel
14ft corral panel
16ft corral panel

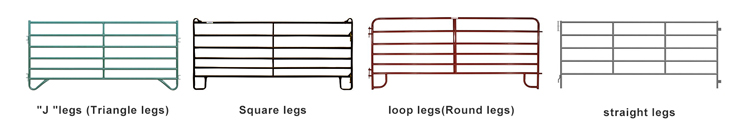

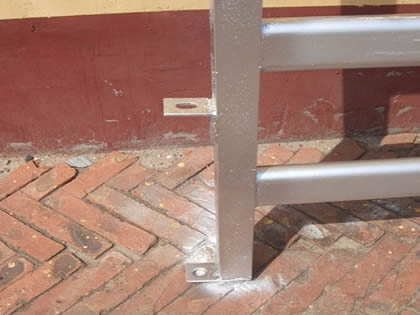

Different type of Corral Panel legs
Cattle Corral Panels Gate

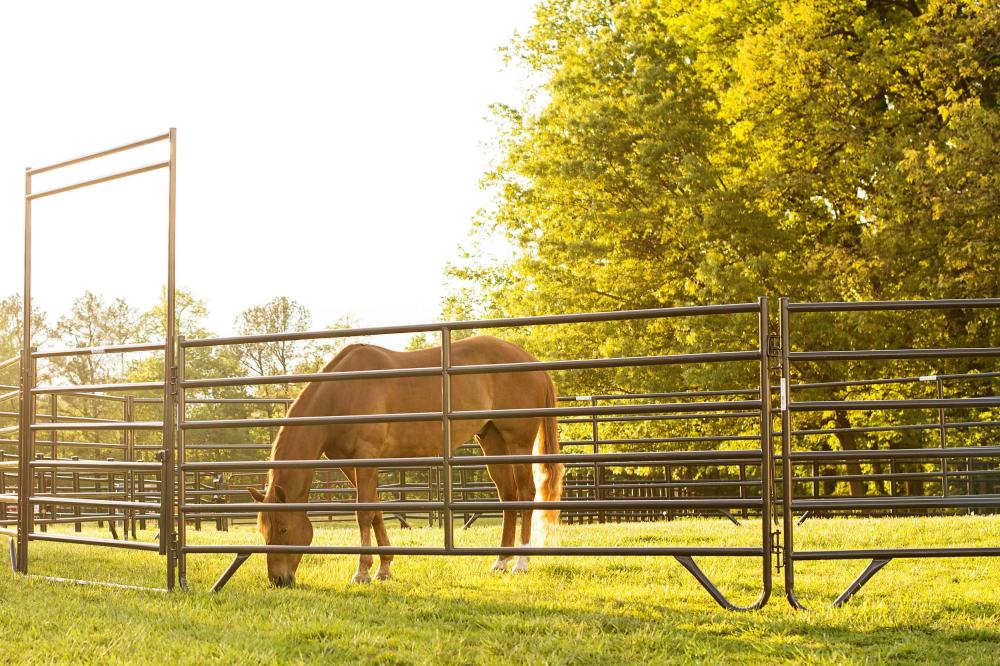

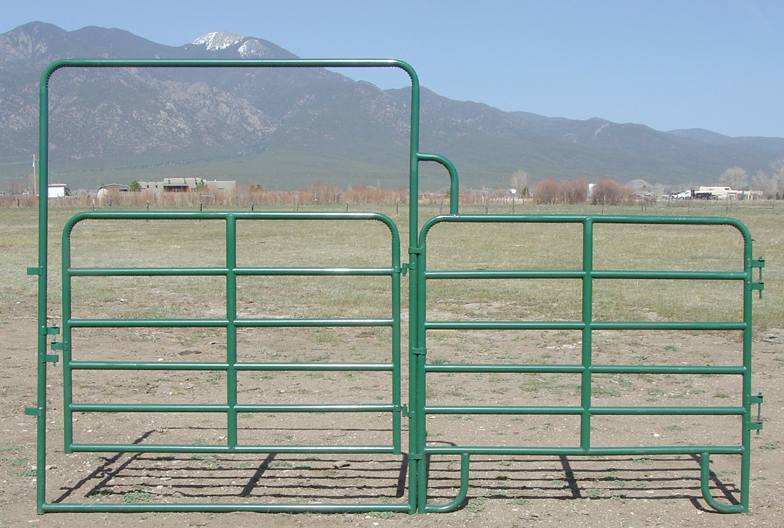

Walk Thru Arch Gate

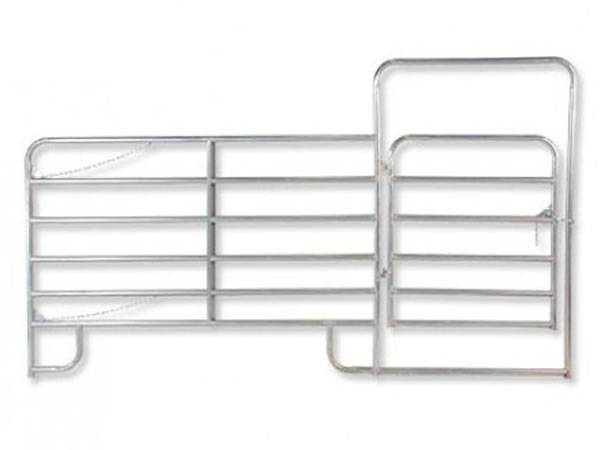

Walk Thru Arch Gate with Panel

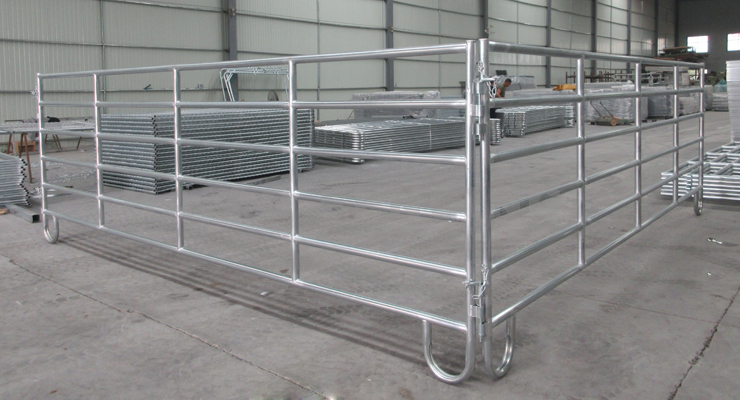

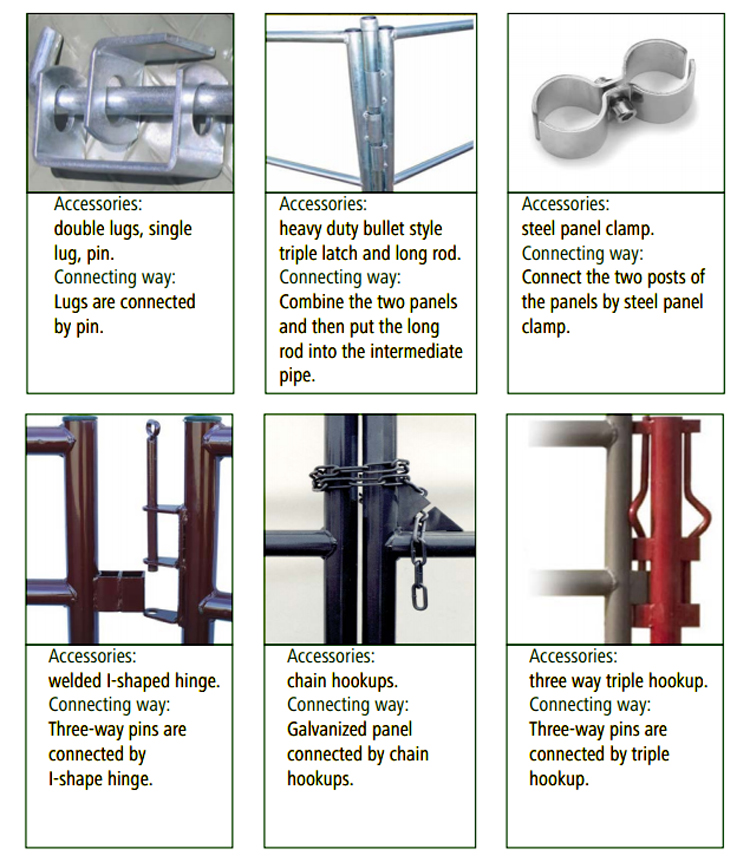

connecting methods of Cattle Corral Panels

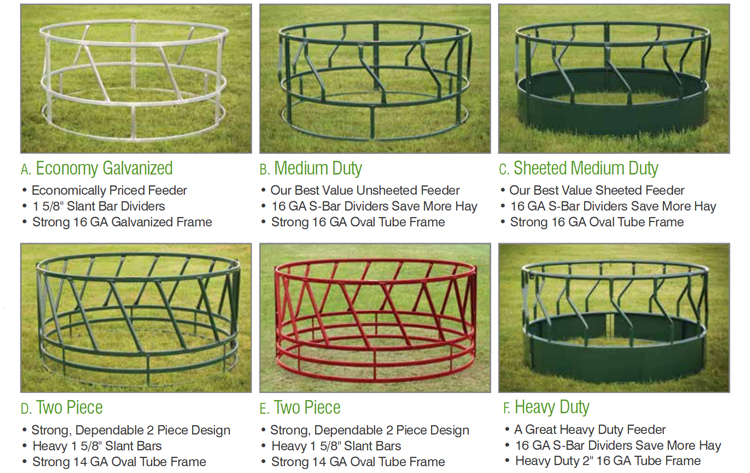

Feeding Equipment

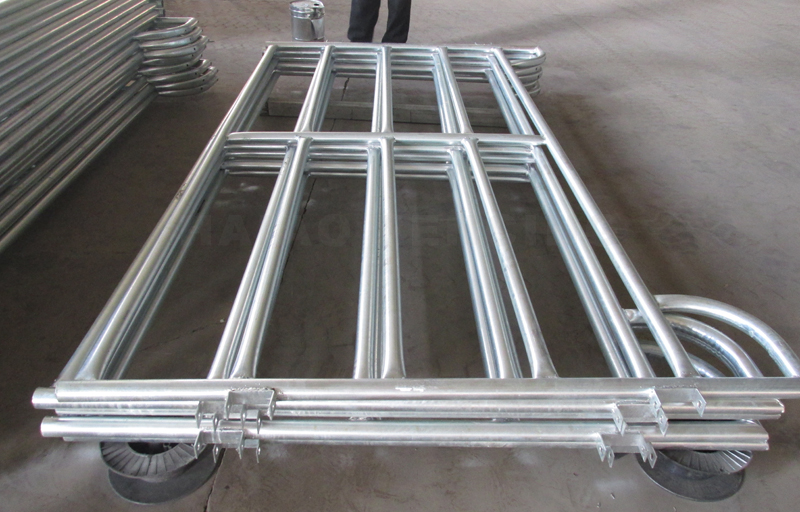

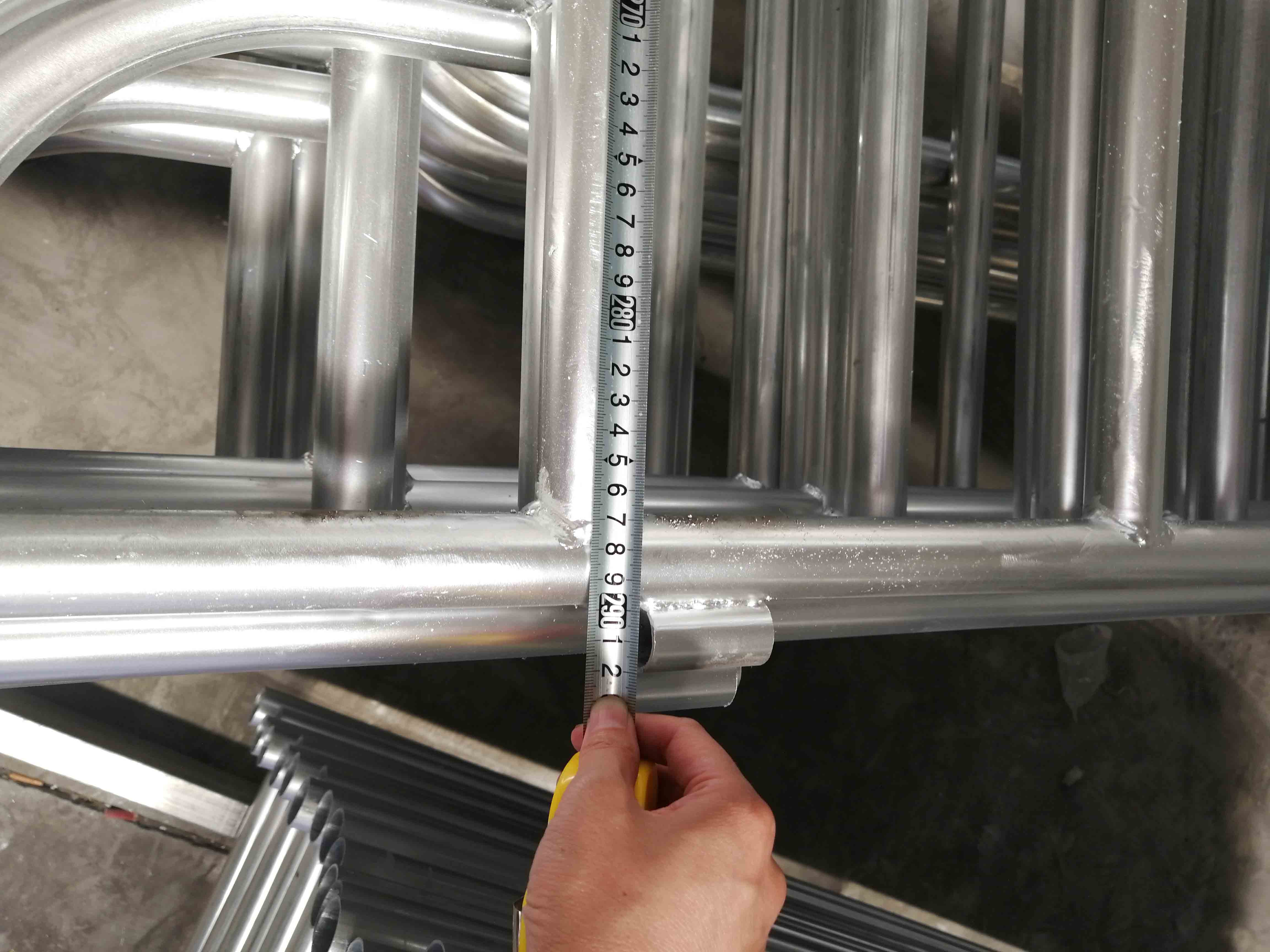

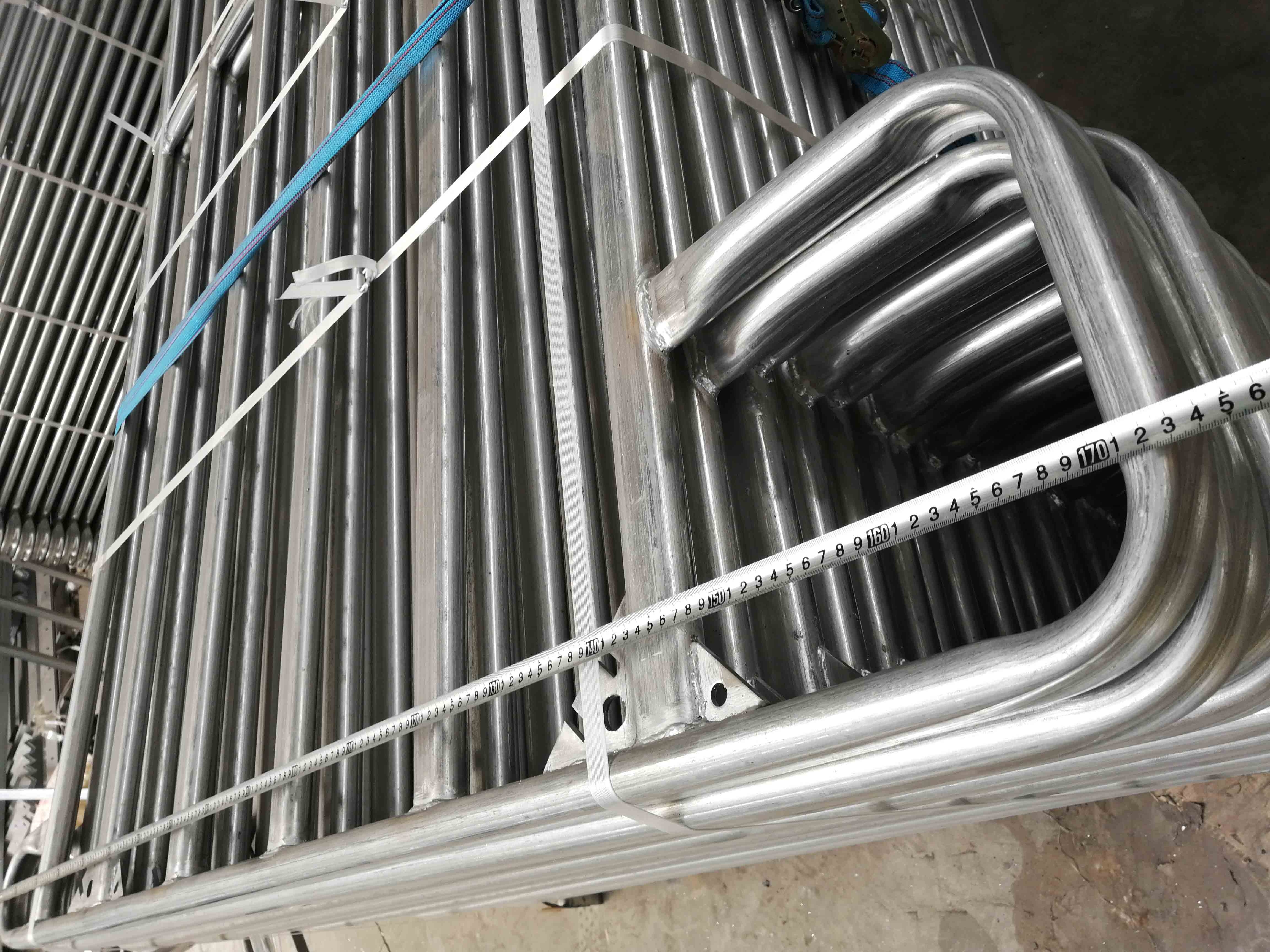

Quality Control

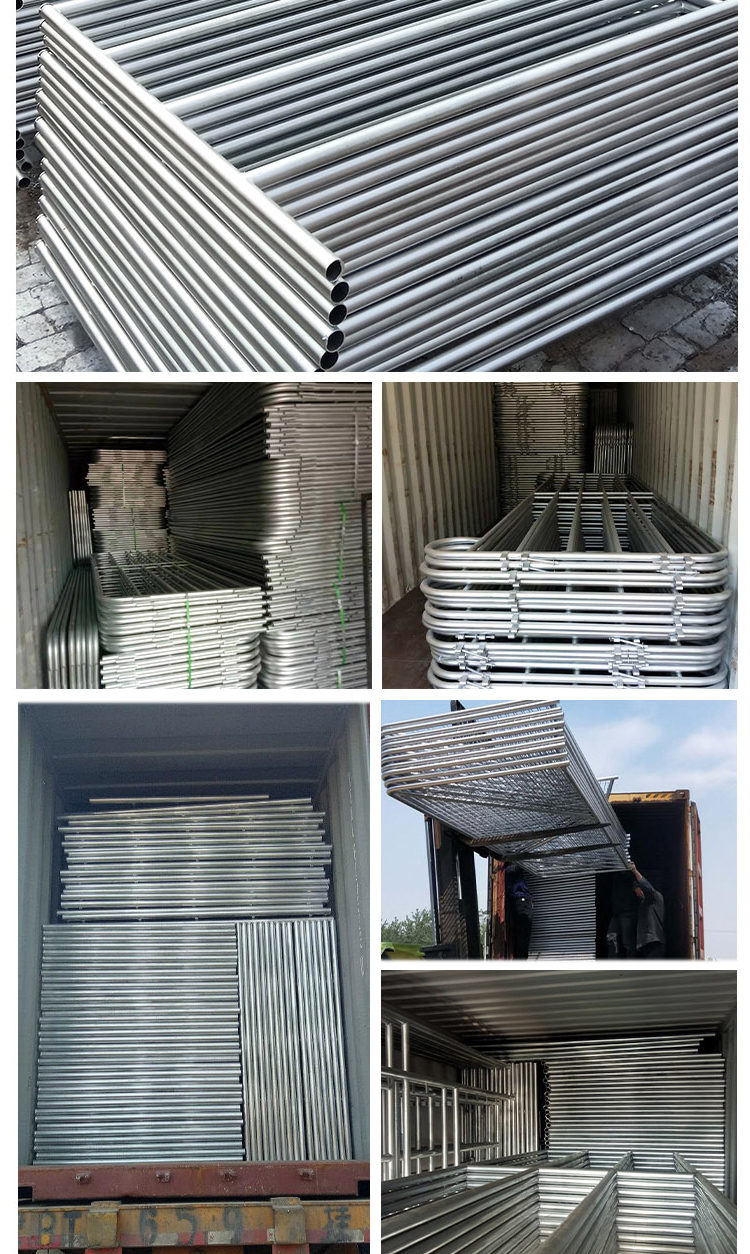

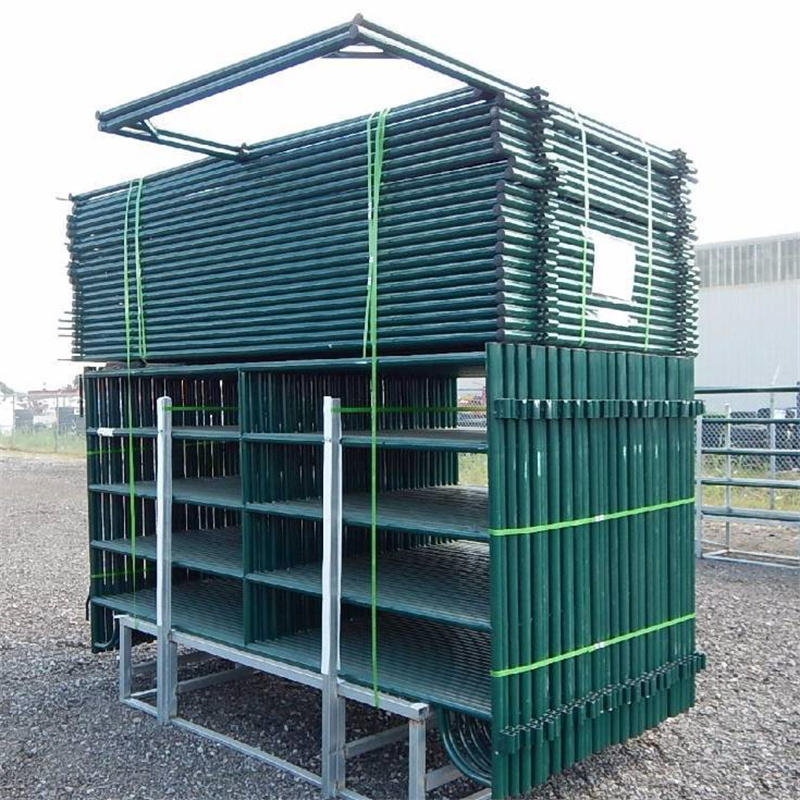

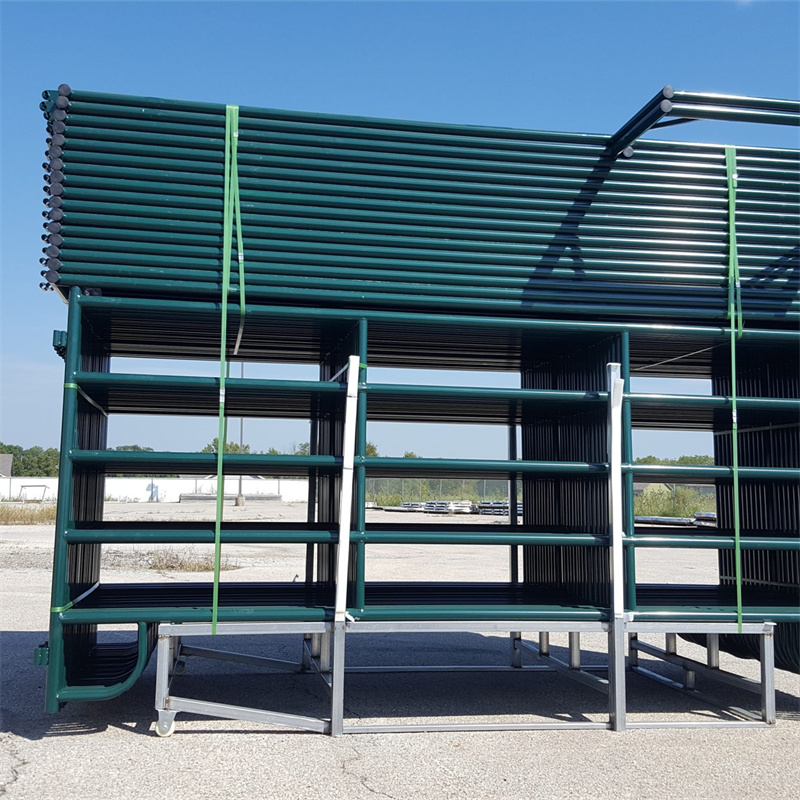

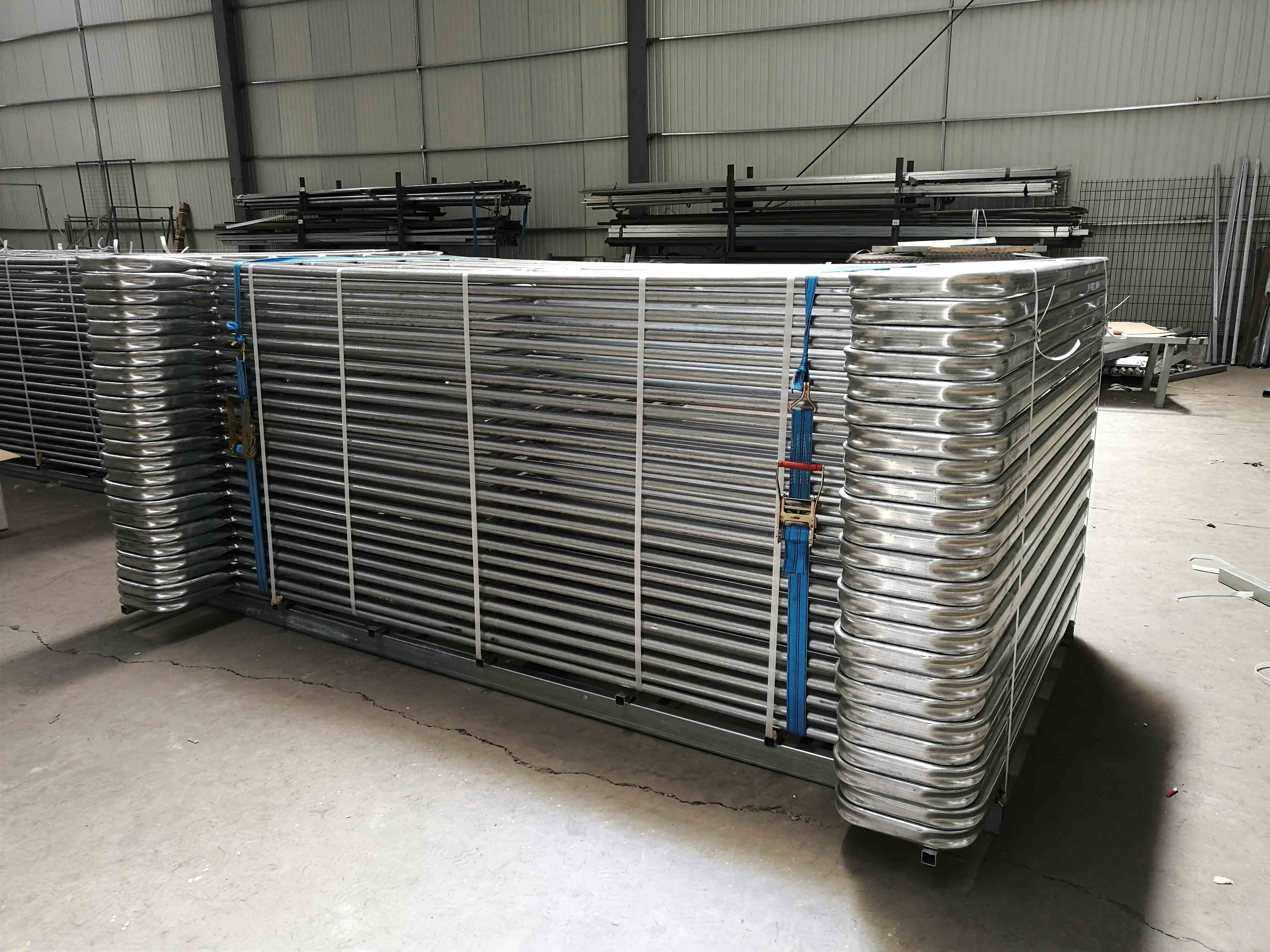

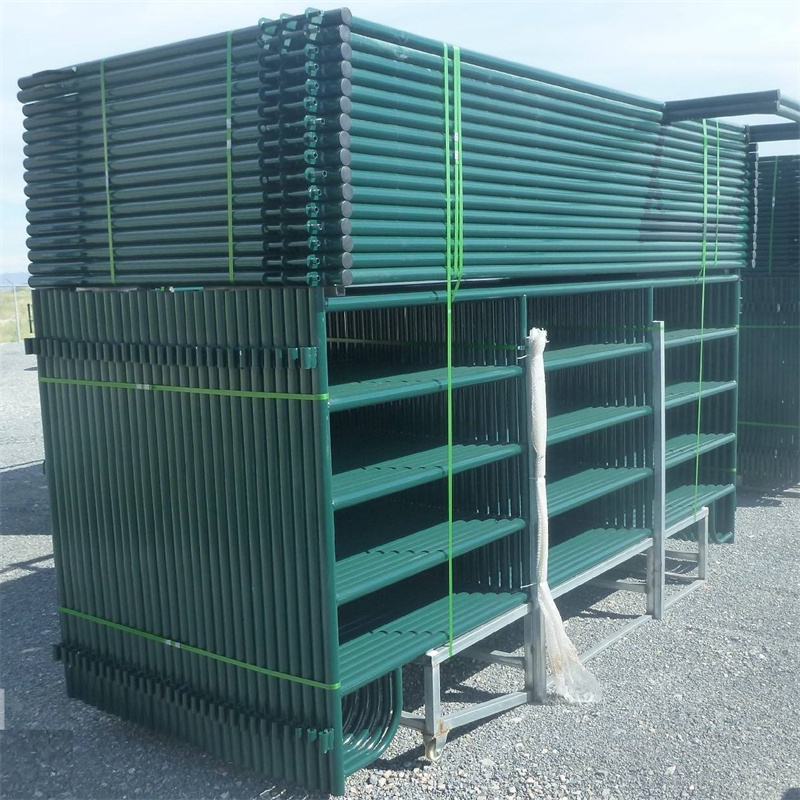

Packing

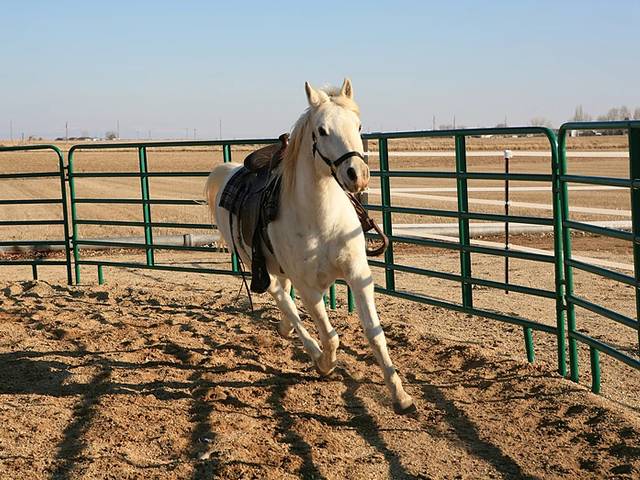

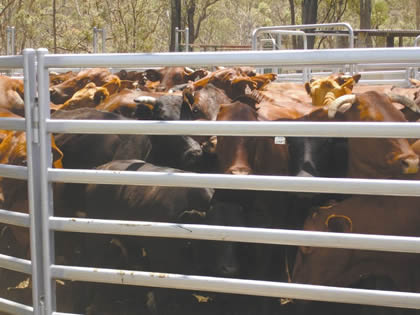

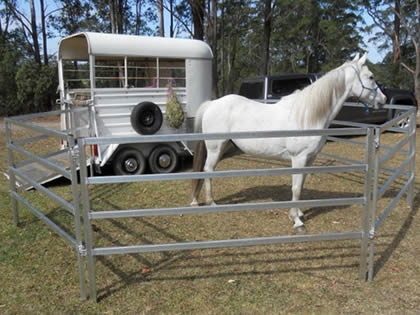

Application

Cattle Corral Panels Features

They are perfect for rounding up cattle in the fields, penning calves, cattle gateways and a variety of use. Our panels are
manufactured according to customers’ requirements.
