TGM PERFORATED METAL & EXPANDED METAL INDUSTRIAL

Security Window Screens

Reservation Now
Prev: Defensive barrier
Next: Stainless Steel Wire Mesh
Detail

304/316 Security Screen Keeps Thief and Insect out, Let Fresh Air in


304grade stainless steel mesh made from 0.9 mm thick wire with 11 mesh pattern is the best security mesh screen (also called crime safe mesh screen) available on the market for secure doors, windows and outdoor areas from intruders and flies, mosquitoes and other pests.

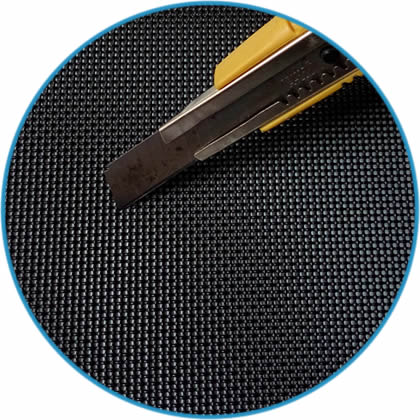

The 0.9 mm thick 304 security screen ensures that it is harder to cut through or penetrate. If you kick at the mesh repeatedly, you can not break through it, but you will injure yourself. This heavy duty 304 mesh with black power coated has more anti-corrosion function.

Apart from high strength and anti-corrosion, the black 304 stainless steel mesh has other two important benefits. First, if you are in the room, it gives you a clear and unobstructed view of the outdoor, but viewers can not peep your privacy from outside. Second, as a security screen mesh, it allows the free flow and circulation of fresh air for your comfort.

Specification:
Material: stainless steel grade 304.
Wire diameter: 0.90 mm.
Mesh hole opening: 11 mesh × 11 mesh.
Surface treatment: black powder coated.
Color: only black color.
Standard size: width 750/900/1200/1500 mm × length 2000/2400/3000 mm.
Guarantee: ten years.
Other mesh sizes available according to customers' need, but not in stock:
10 mesh × 0.9 mm, 10 mesh × 1.2 mm, 12 mesh × 0.8 mm, 12 mesh × 0.7 mm, 14 mesh × 0.7 mm, 14 mesh × 0.6 mm.
Package: 5 pieces in one carton box, then 10 carton boxes in one wooden case; or 25/50 pieces per wooden case.



A piece of black stainless steel security mesh with a white label marked 14 mesh × 0.5 and 304.                                                       304 stainless steel security screen: 14 mesh × 0.5 mm wire diameter.

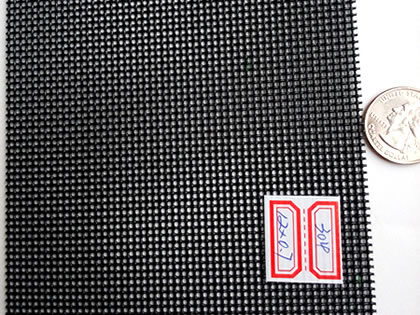

A piece of black stainless steel security mesh with a white label marked 12 mesh × 0.7 and 304.

304 stainless steel security screen: 12 mesh × 0.7 mm wire diameter.

A piece of gray stainless steel security mesh with a white label marked 14 mesh × 0.55 and 304.

304 stainless steel security screen: 14 mesh × 0.55 mm wire diameter.

Two pieces of security screen are placed together beside a metal coin:one in black and one in gray.

We can provide security screen in black and gray color.

Many rolls of stainless steel screens wrapped with plastic film

Security screen rolls in plastic film package

Security mesh screen with wooden box package and tied with green wires.

Security screen is packaged in wooden box in workshop


Comparision between 304 secruity mesh and 316L security mesh

Because 304 grade security mesh screen with 0.9 mm wire is thicker than 0.8mm 316mesh So, 304 stainless steel security screen is stronger and wear resistance than 316, maintaining the corrosion resistant qualities, but 304 grade stainless steel is less brittle than 316.

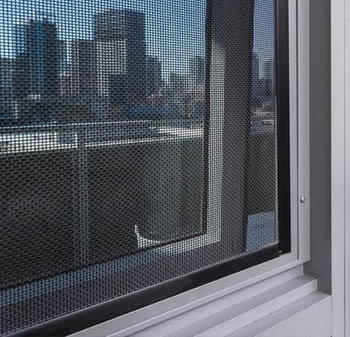

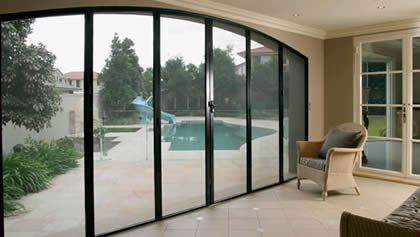

304 security screening is ideal for secure window/door screen and safe swimming pool fence.

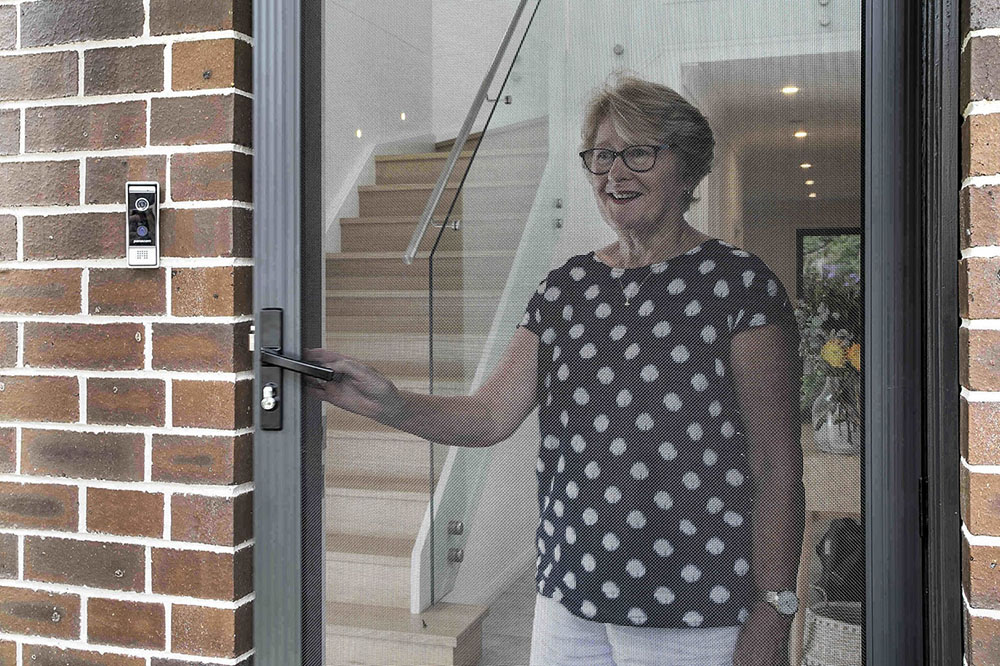

High strength 304 stainless security screen with elegant appearance is mainly used as security screen and door for guarding your house and office, having the anti-theft, anti-insect and ventilation performance.

Inquiry for Our Product


304/316 Stainless Steel Mesh for Security Window Screen


Security window screen let fresh air flow into room, having the features of bulletproof, anti-theft, and anti-fly.

Security Window Screen let fresh air flow into your home, meanwhile keeps mosquitoes out. Our window security screen is made from the 304 stainless steel wire or 316L stainless steel wire with black powder coated. It is super resistance to impact, bulletproof, anti-theft, anti-fly and mosquito together, and has the features of high temperature resistant, flame retardant, high strength, toughness, and the surface color and luster is bright beautiful, can be better to increase air circulation rate. Its quality meets Australia standard. Security window screen is ideal guarding against theft and mosquito in bulletproof office buildings, villas, and residential.

Specifications
Mesh size: 11 mesh × 0.8 mm,11 mesh × 0.9 mm, 10 mesh × 0.9 mm, 12 mesh × 0.71 mm, 14 mesh × 0.6 mm, 9 mesh × 1.0 mm.
Main material: 304, 316 stainless steel.

Specifications

meshwire diameterwidthlength
10×100.90mm0.75/0.82/0.9/1/1.22m2/2.4m
11×110.80mm0.75/0.82/0.9/1/1.22m2/2.4m
12×120.70mm0.75/0.82/0.9/1/1.22m2/2.4m

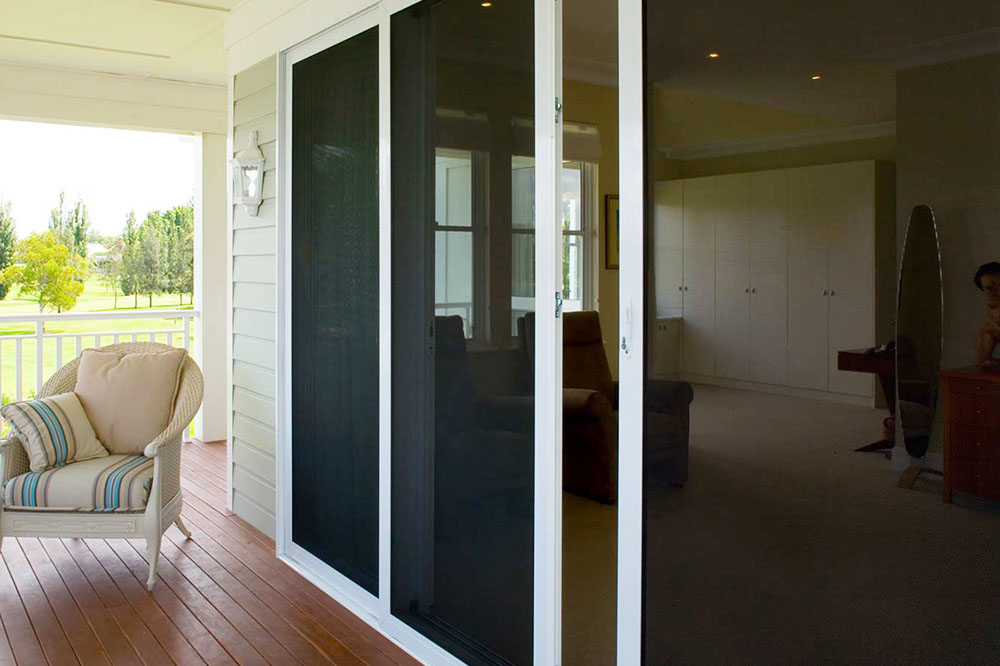

security fly screen doors
















Black powder coated.
Weaving methods: plain weave or crimped wire woven.
Security screens meet Austrilian standard, pass knife test, impact test, jemmy attack test.

Mengke 304/316 Stainless steel Security Window Screen benefits:

  • Keep mosquitoes out, let fresh air in, give you a cool and safe house in summer.

  • Blocks out at least 30% of UV Rays, keeping a longer life for interior furnishings.

  • Blocks heat transfer, improves the energy rating of glass windows and keeps your home cooler in Summer and warmer in Winter.

  • Maximizes strength and durability, and enjoy clear unobstructed views.

  • Corrosion resistant, and 10 years warranty.
