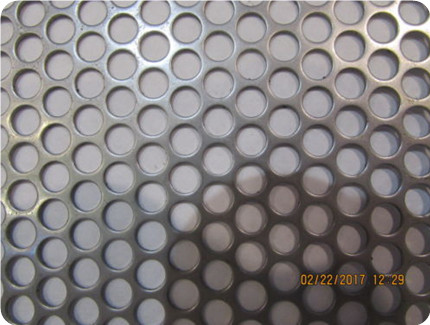

Stainless Steel Perforated Metal

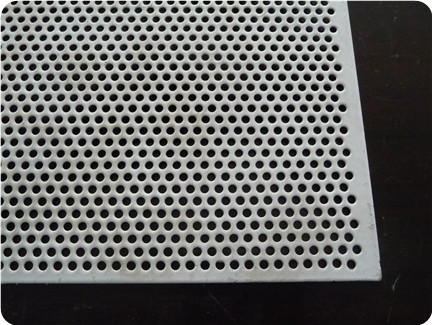

SheetStainless Steel Perforated Metal Sheet, Round Hole, Stainless Steel Type 304, 20 Gauge, Mill Finish, 1/8" Holes on 3/16" Centers, Staggered Pattern, 40% Open Area304 Alloy is non-magentic, corrosion, stain and weather resistant. Staggered perforated hole patterns are offset on 60 degree angles which makes all the bridges the same width and provides maximum strength and uniform wear.


Material:
Stainless Steel
Alloy:
SUS304
Finish:
Unpolished (Mill)
Thickness:
0.035 (20 ga.)
Width:
48 inches
Length:
96 inches
Hole Shape:
Round
Open Area:
40 %
Hole Size:
1/8 inch
Pattern:
Staggered
Hole Centers:
3/16 inch
Thickness Tolerance:
+/-0.001
Width Tolerance:
+/-0.063
Length Tolerance:
+/-0.063



Note: This item is prepackaged and shipped direct from our storage warehouse. Custom Cutting Service is not available for this item.

Specification

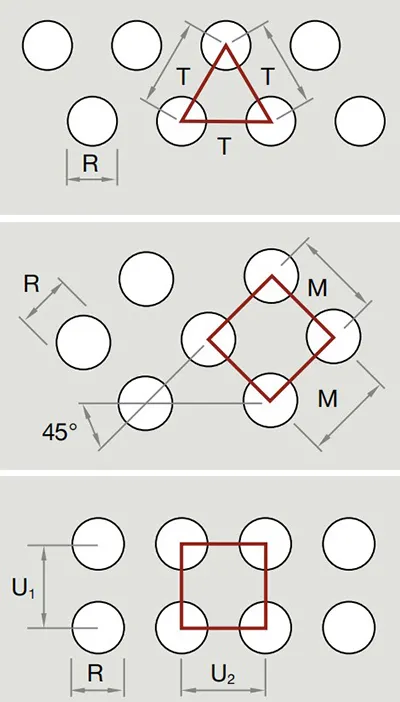

Round, in 60°staggered rows
CodeHole Dia (R)-mmPitch(T)-mmOpen Area%
R0.8T20.8214.6
R1T21222.8
R1.2T2.51.22.521
R1.5T31.5322.8
R2T32340.4
R2T3.523.530
R3T53533
R4T64640.4
R5T85835
R6T96940
R8T1181148.1
R10T13101353.8
R10T15101540.4
R20T27202749.9
Round, in 45°staggered rows
CodeHole Dia (R)-mmPitch(T)-mmOpen Area%
R2T62617.4
R3T83822.1
R4T84839.3
R5T95948.5
R6T1061056.5
R7T1471439.3
R8T1881831
R12T28122828.8
R15T40154022.1
R16T40164025.1
R26T50265042.5
Round, in straight rows
CodeHole Dia (R)-mmPitch(T)-mmOpen Area%
R2T42419.6
R3T63619.6
R4T84819.6
R5T85830.7
R8T1281239.4
R12T15121550.2
R15T20152044.2
R20T30203034.9
R30T50305028.3
