Nickel Woven Wire Mesh
Nickel Woven Wire Mesh
Nickel woven wire mesh is a type of mesh made of nickel wire with high purity not less than 99.5% as the primary material. It is often used for filtration, screening, and other purposes. It is strong and resistant to many forms of corrosion, making it a popular choice for a variety of applications.
We can not only provide woven type but also expanded metal type.
| Quantity (Square Meters) | 1 – 1000 | >1000 |
| Est. Time(days) | 15 | To be negotiated |
| Material | Nickel N4(Ni 201), N6 (Ni 200) (UNS N02200/W.Nr. 2.4060 & 2.4066) |
|---|---|
| Wire Diameter | 0.02-4mm, Available Customization |
| Mesh Count | 1-635 |

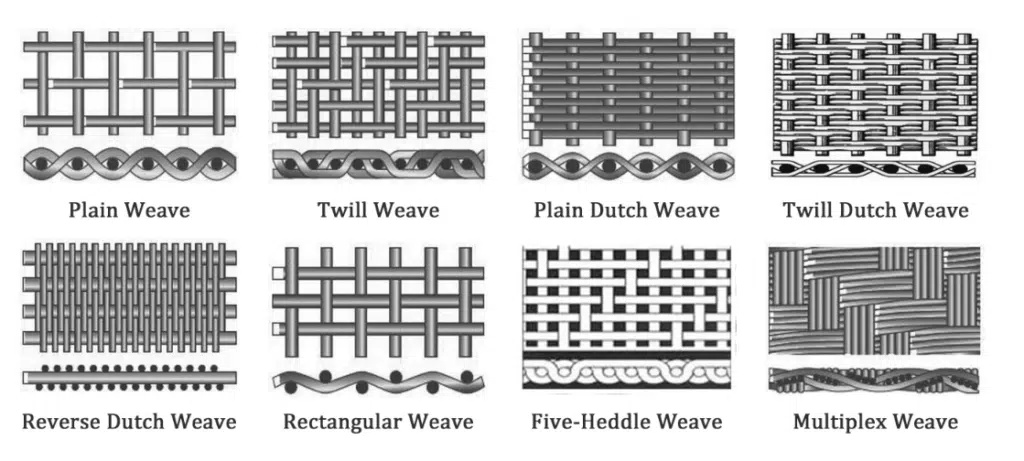

| Woven Type | Plain Weave, Twill Weave, Dutch-Weave, Reverse Twill Dutch-Weave |
| Standard | GB, ASTM, ASME |
Nickel Woven Wire Mesh
Nickel Woven Wire Mesh is mostly preferred in corrosive environments such as filtration of liquids, gas, etc. Because of its excellent mechanical characteristics, it has wide applications in the electronic and aerospace industries. Also suitable for chemical and caustic handling equipment and piping, magnetostrictive devices and food processing equipment.
Over the years, the terminology in the industry has evolved concerning the three following terms “nickel wire mesh”, “nickel wire cloth” and “nickel wire fabric”. In today’s marketplace, these three wordings are used interchangeably and refer to the same product, with “wire mesh” or even “mesh” as the most prevalent from the purchasing and usage standpoints.
Nickel Woven Wire Mesh Advantages
Corrosion-resistant
Good resistance and stability in acids, alkalines, and neutral salt solutions.
Good resistance at higher temperature up to 550℃
High electrical conductivity.
Thermal conductivity and ductility.
Wear resistance.

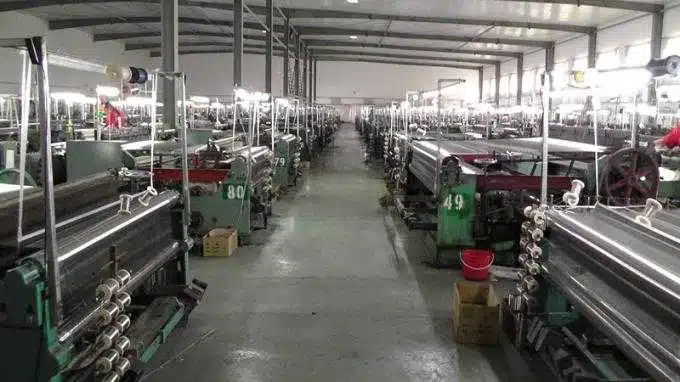

Nickel Woven Wire Mesh WorkShop
Terminology

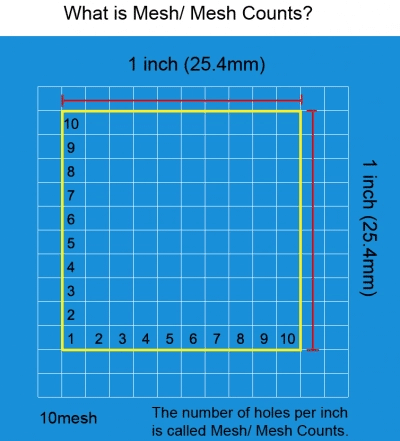

Mesh/Mesh Count

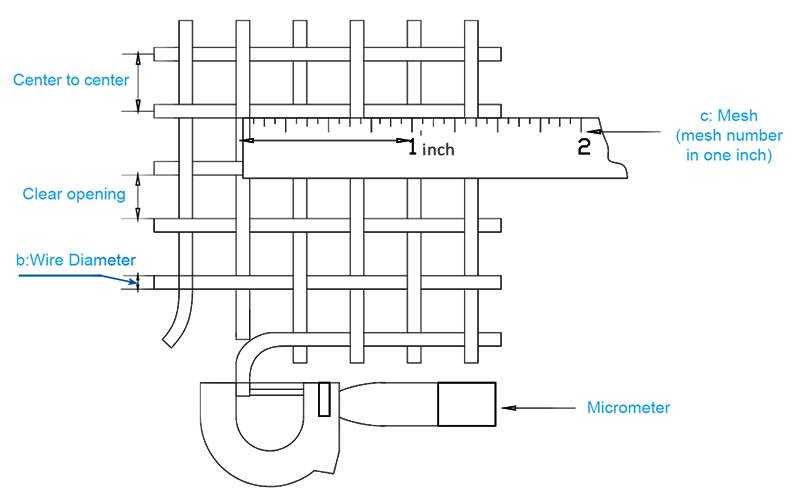

Wire Diameter/center to center/clear opening
