Square Hole Perforated Metal

Square Hole Perforated Metal

Square perforated metal is the second most popular pattern, created by punching various square-shaped holes using specialized tools. TGM Perforated Centers provides square perforated metal with a wide range of versatility and effective applications. This square perforated metal is available in both staggered and straight arrangements, along with various diameter, thickness, and size options.

TGM Perforated Centers' square perforated metal features a geometric design that appeals to customers. The materials used can include carbon steel, galvanized steel, stainless steel, and aluminum.

Round perforated metal is commonly utilized in applications such as infill panels, displays, partitions, guards, façades, screening, filters, ventilation, and security enclosures. Standard hole sizes range from 0.02 inches to 1 inch in diameter, while thickness options range from 26 gauge to 1/2 inch.

It aslo named Square Hole Perforated Steel Mesh

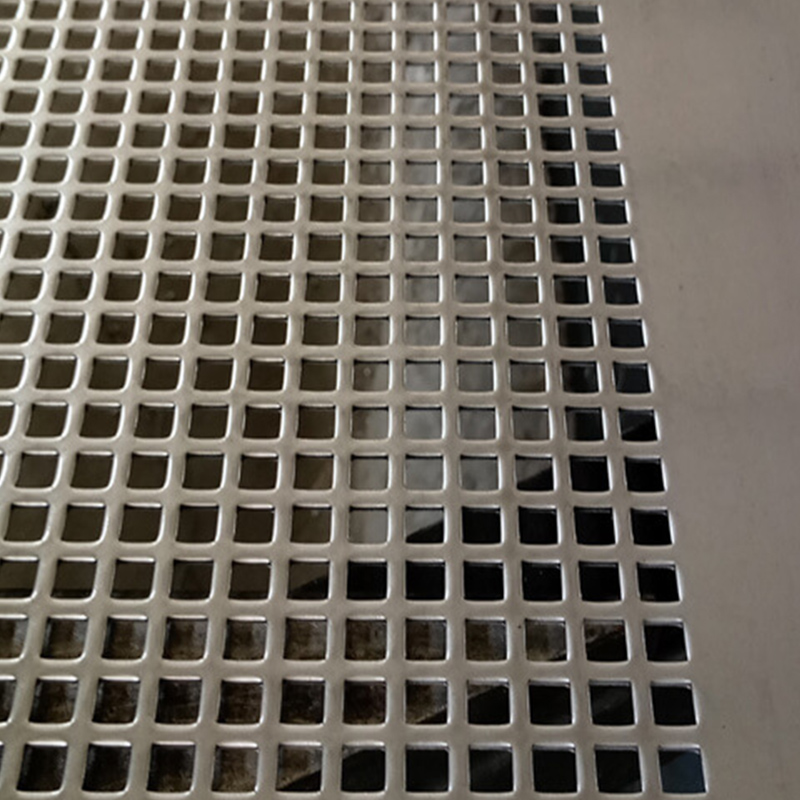

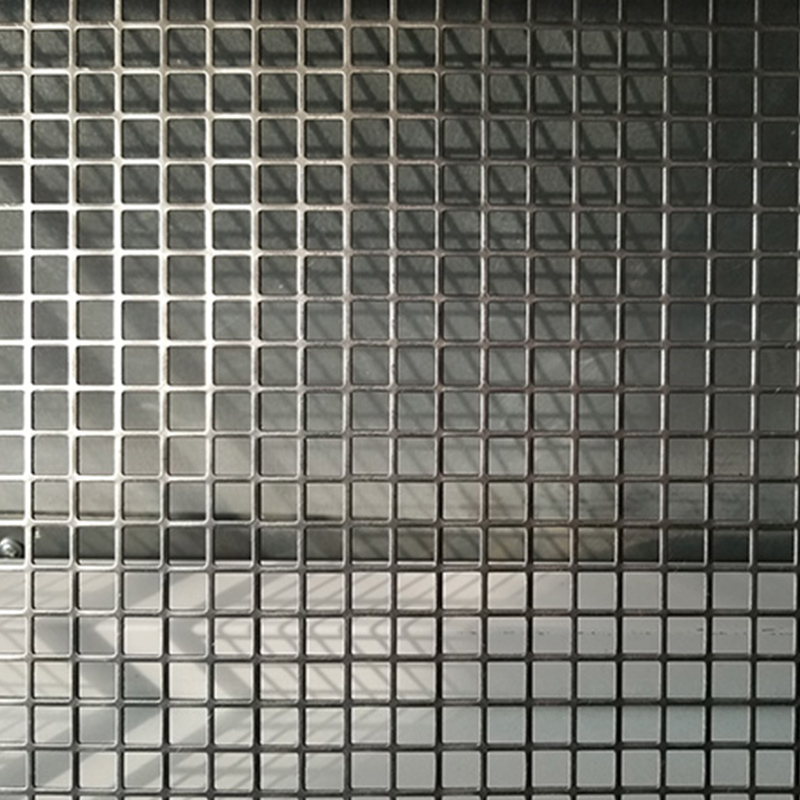

The square hole perforated steel mesh, also known as low carbon steel perforated mesh, is punched by a punching machine through a mold, creating square holes on the iron plate. The size of the holes can be customized according to customer needs, and the pass type is very flexible. The arrangement of the square holes has two types: linear arrangement and staggered arrangement.

Compared with round holes, the square holes of the perforated steel mesh provide a larger opening ratio, making it more suitable for occasions that require high product visibility. Consequently, this square perforated metal is widely used in the decoration of shops and as protective covers for machines.

• Material: carbon steel, low carbon steel.

• Material Model: AISI 1018/1144/12L14/8620, ASTM A36/A653/A366/A513.

• Thickness: 0.3–8 mm.

• Width: 0.9–1.22 m.

• Length: 1.2–3 m.

• Hole Diameter: 13–100 mm.

• Hole Arrangement Mode: straight, staggered.

• Staggered Center: 0.125–1.875 mm.

• Mesh Opening Area: 5% – 79%.

• Pattern Design: available.

• Surface Treatment: hot dipped galvanizing, powder coating is also available.

• Package: packed with plastic film, shipped by pallets or according to customers' requirements.

Square hole    size	Square pitch	Open area	Thickness	Sheet size	Picture
3mm	5mm	36%	0.7mm~1.5mm	1000 x 2000mm1220 x 2440mm 1250 x 2500mm1500 x 3000mm
4mm	7mm	32.65%	0.7mm~1.5mm	1000 x 2000mm1220 x 2440mm 1250 x 2500mm1500 x 3000mm
5mm	8mm	39.06%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
5mm	16mm	9.77%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
6mm	9mm	44.44%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
8mm	10mm	64%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
8mm	24mm	11.11%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
10mm	14mm	51.02%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
10mm	30mm	11.11%	0.8mm~2.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
15mm	20mm	56.25%	1.5mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
15mm	40mm	14.06%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
20mm	25mm	64%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
25mm	30mm	69.44%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
25mm	35mm	51.02%	1.0mm~3.0mm	1000 x 2000mm1220 x 2440mm1250 x 2500mm1500 x 3000mm
Special custom fabricated to your design
