Perforated Sunshade Panels – Aesthetically and Ventilated

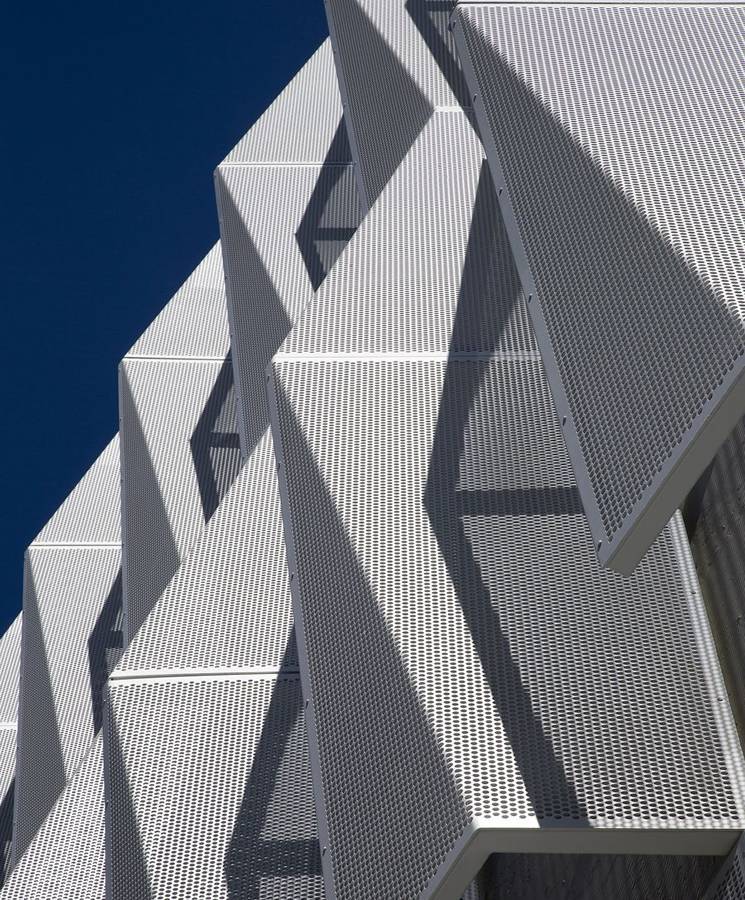

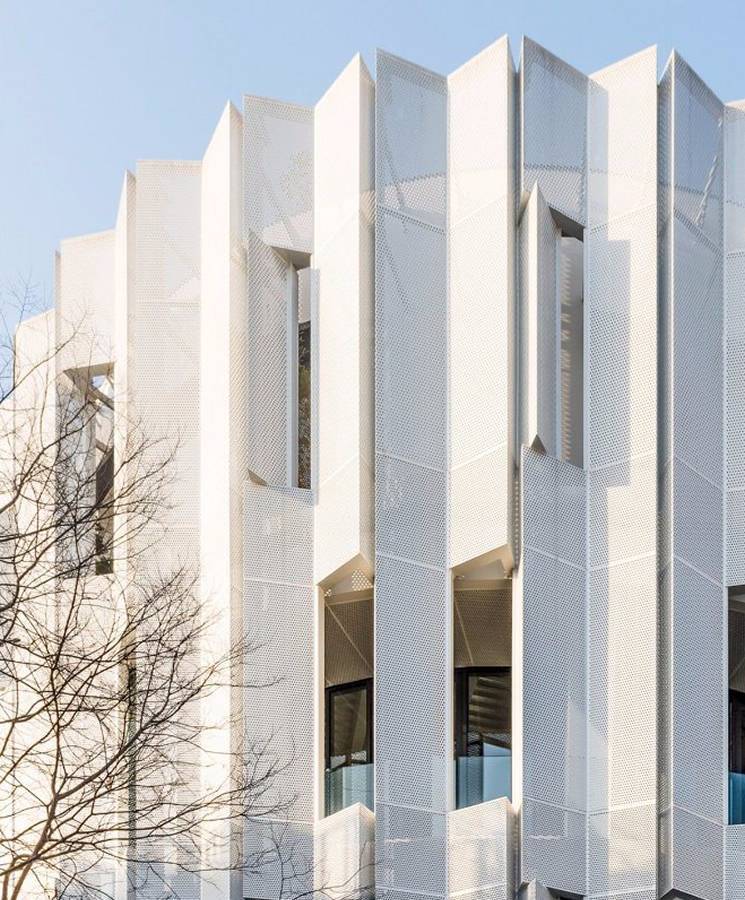

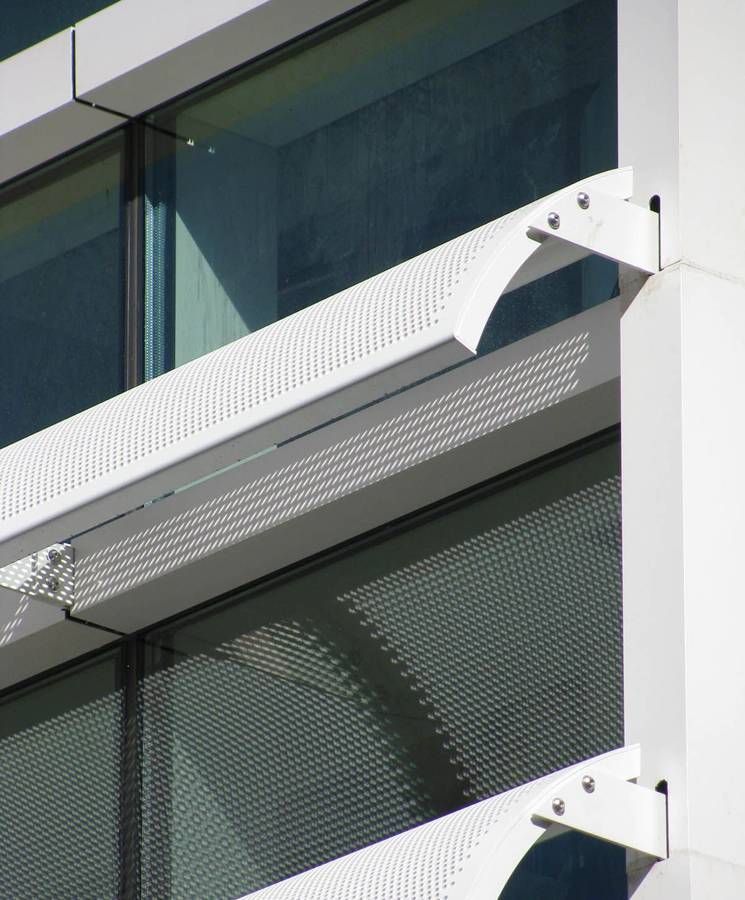

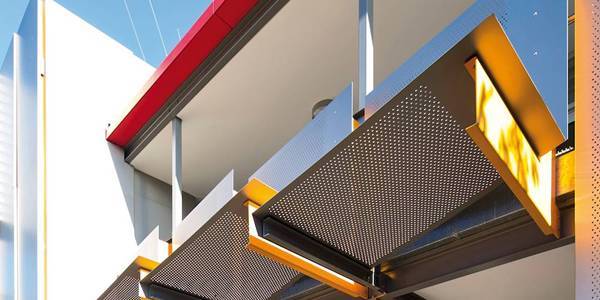

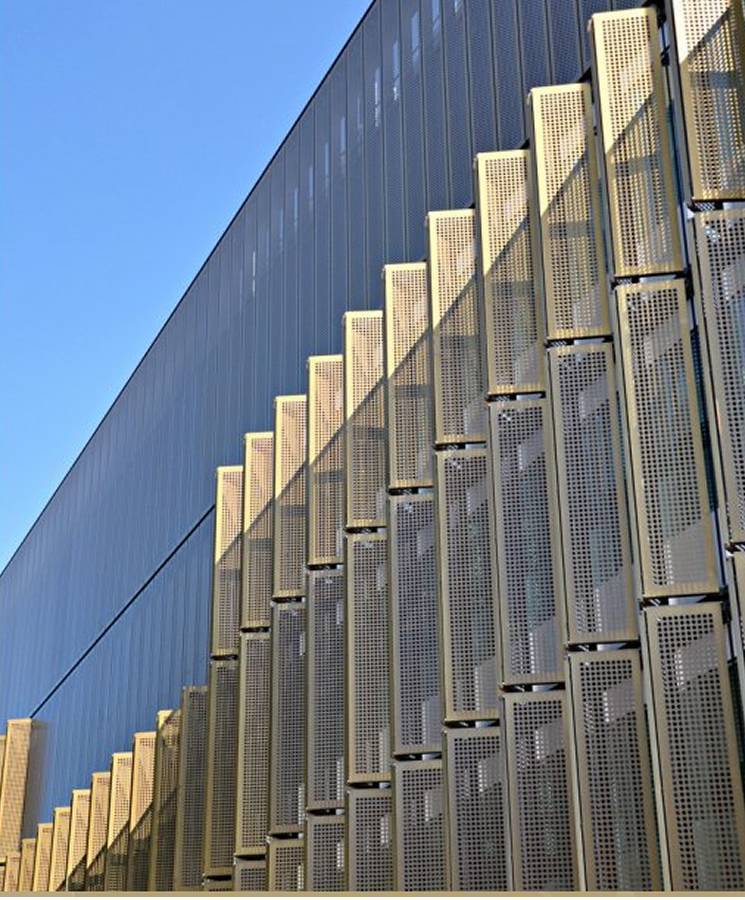

Perforated metal panels are widely used in the exterior sun control system. For such purposes, the panels make people enjoy a comfortable working environment without blinding sunlight, as well as keep the air flowing into the building and regulate the temperature. Besides, the adoption also adds vitality to the exterior building walls. The best option materials for perforated metal sunscreen are aluminum or aluminum alloy. Finished products have a high strength-to-weight ratio and are resistant to aging even after long-term sun exposure.

• Ease the pressure of enclosed spaces.

• Opening your field of vision.

• Use natural light wisely for energy saving.

• Resistant to corrosion, free maintenance.

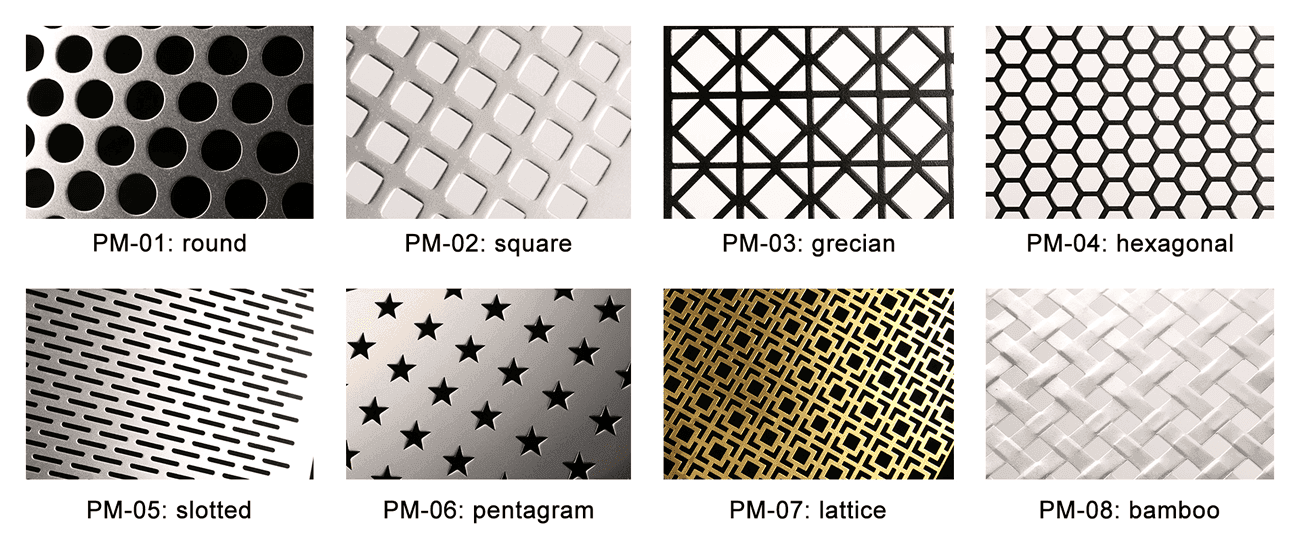

• Various hole patterns, panel sizes & coatings.

• Easy and cost-effective installation.

Considerate:

• The project should respect the historic surroundings.

• Proper hole size design to ensure air flow.

• Mounting method? Horizontal or vertical?

• Need to be easy to install, operate and maintenance.

• Corrosion resistant performance & color retention.

• Aluminum

  Aluminum perforated metal sheets are lightweight and corrosion resistant. Multifarious brilliant colors are available after anodizing.

• Stainless steel

  Austenitic stainless steel has the best process properties since its good plasticity. Martensitic stainless steel has a lower technological performance because of its higher hardness.

• Galvanized steel

  Adopt hot dipped galvanized steel as material, it can keep your finishing from corrosion damaged for decades.

• Copper

  Featured with its inherent nobleness touch, it offers the perforated panels more charming.

• Thickness: 0.3–2 mm.

• Width: 0.8–1.5 m.

• Length (Height): 1.2–3 m.

• Standard size: 1 × 2, 1.2 × 2.4, 1.5 × 3 m or customized.

• Hole Diameter: 2–100 mm.

• Hole Arrangement Mode: straight, staggered.

• Staggered Center: 0.125–1.875 mm.

• Mesh Opening Area: 10% – 50%.
