Expanded Metal Infill Panels for Security, Decoration and Durability

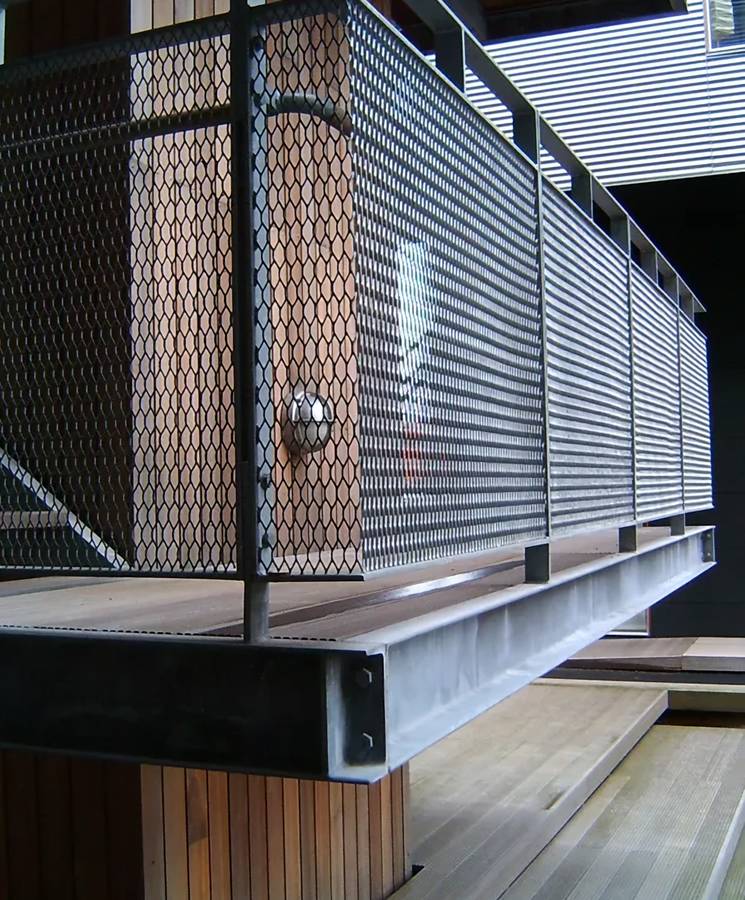

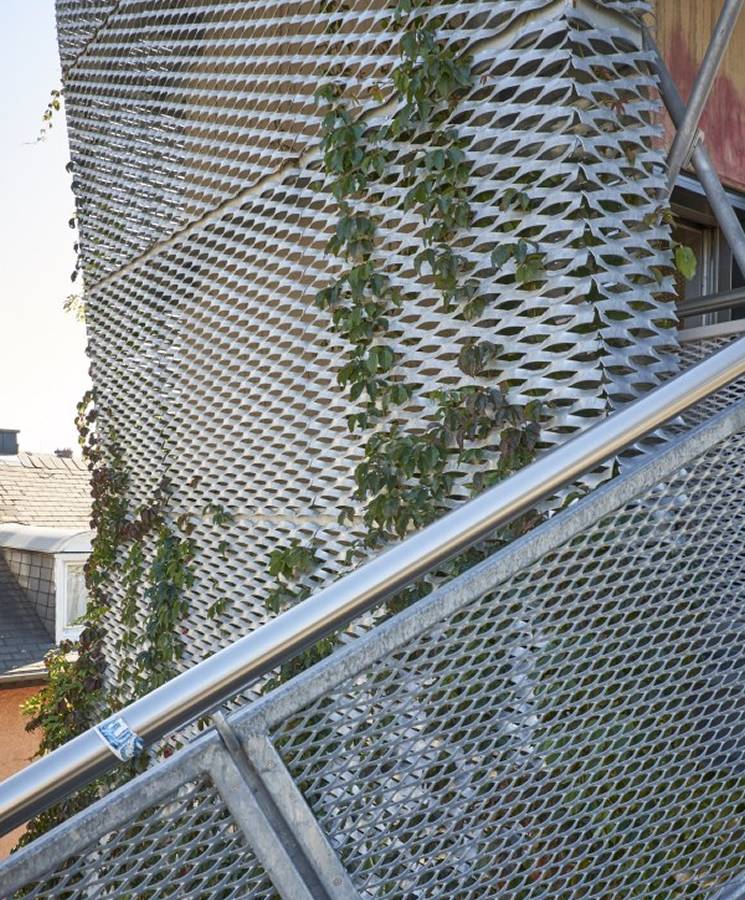

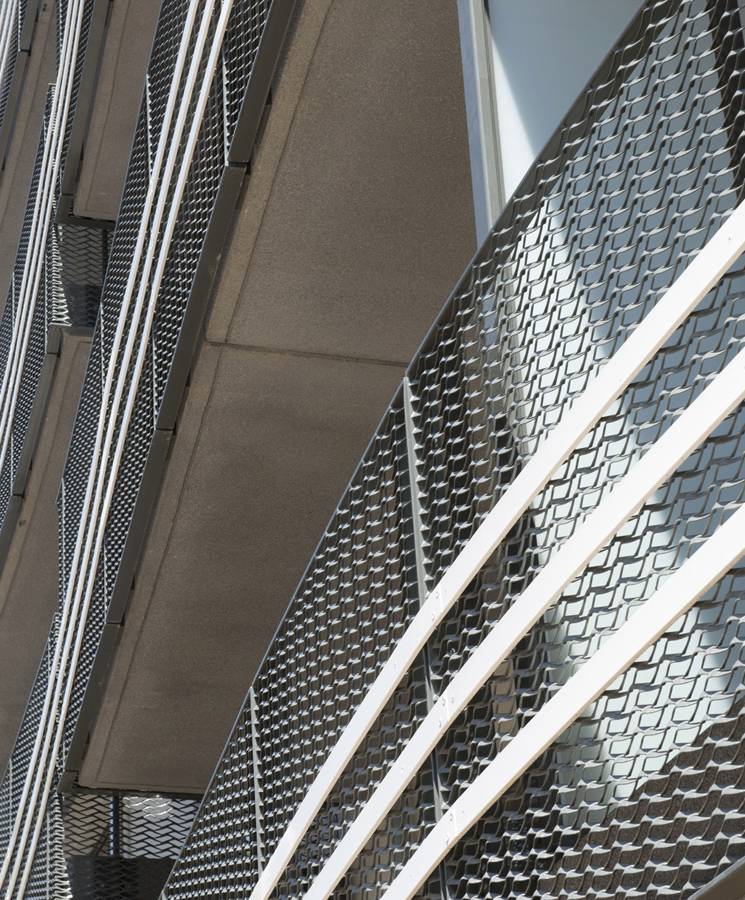

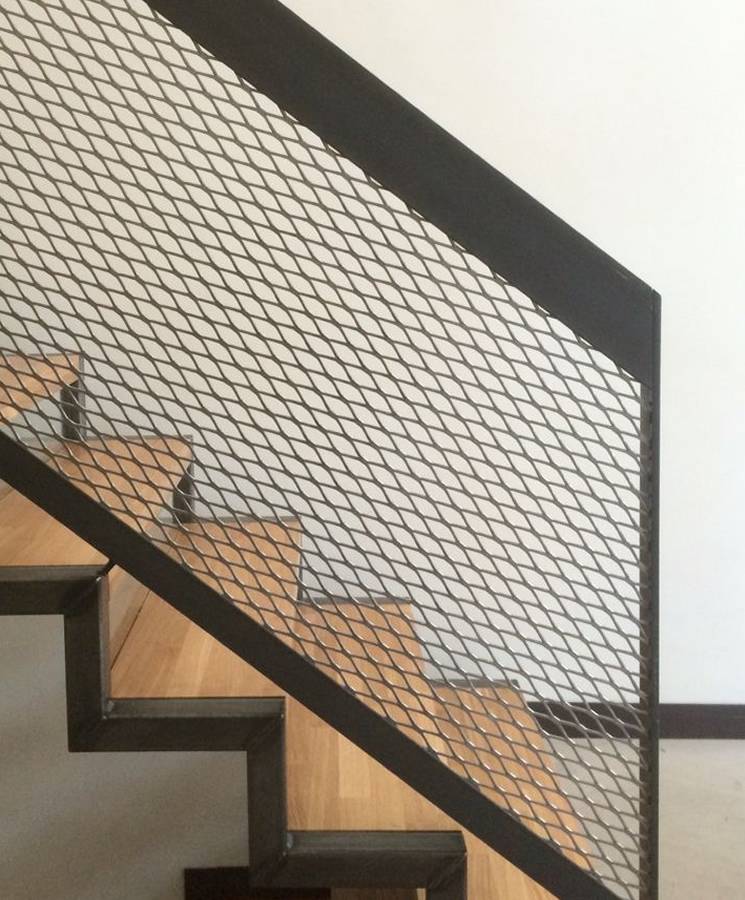

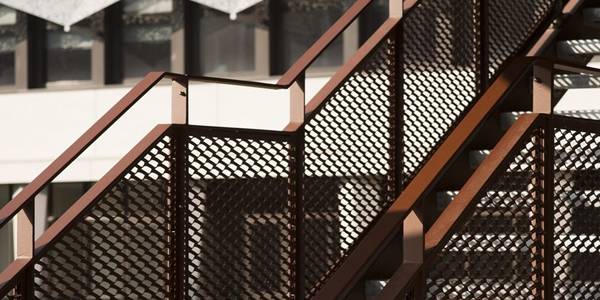

Expanded metal panels are made from a single piece of metal through slitting and stretching process. Finished products without any welding or waste of materials and offer a clear and bright visual effect. Based on the above characteristics, expanded metal panel are ideally used as the infill panels for balustrade & railing. They are multipurpose for bridge, terrace, balcony, stairs and so on. Our products are all treated with anticorrosive coating to ensure durability both outdoors and indoors.

• Good ventilation, allow flow of air & light.

• High strength and rigidity for security.

• Anti-corrosion surface treatment for durability.

• Various patterns, finishes & innovative colors.

• All-purpose for both indoor and outdoor applications.

• Easy to install and maintenance free.

Considerate:

• Match with the surrounding architectural style.

• Indoor or outdoor?

• Corrosion resistant performance & color retention.

• Need to be easy to install, maintenance free.

• Material weight and strength?

•

• • Hole shape: diamond, square, hexagonal, tortoise shell.

  • Thickness: 1.5–3 mm.

  • LWD: 12.5–200mm.

  • SWD: 5–80 mm.

  • Width: 0.8–1.5 m, or customized.

  • Height: 0.5–2 m, special length can be customized.

  • Surface treatment: anodize oxidation, PVDF coating, PVC coated, galvanized, powder coated.




• Highly recommended

  Aluminum

  Aluminum perforated metal sheets are lightweight and corrosion resistant. Multifarious brilliant colors are available after anodizing.

• Available

  Weathering Steel

  Weathering steel, also called corten metal, is developed to eliminate the need for painted steel and to ensure that the steel will form a stable rust-like appearance even if the elements are exposed outdoors for a long time.

• Available

  Stainless Steel

  Austenitic stainless steel has the best process properties since its good plasticity. Martensitic stainless steel has a lower technological performance because of its higher hardness.

• Available

  Galvanized Steel

  Adopt hot dipped galvanized steel as material, it can keep your facade panel from corrosion damaged for decades.

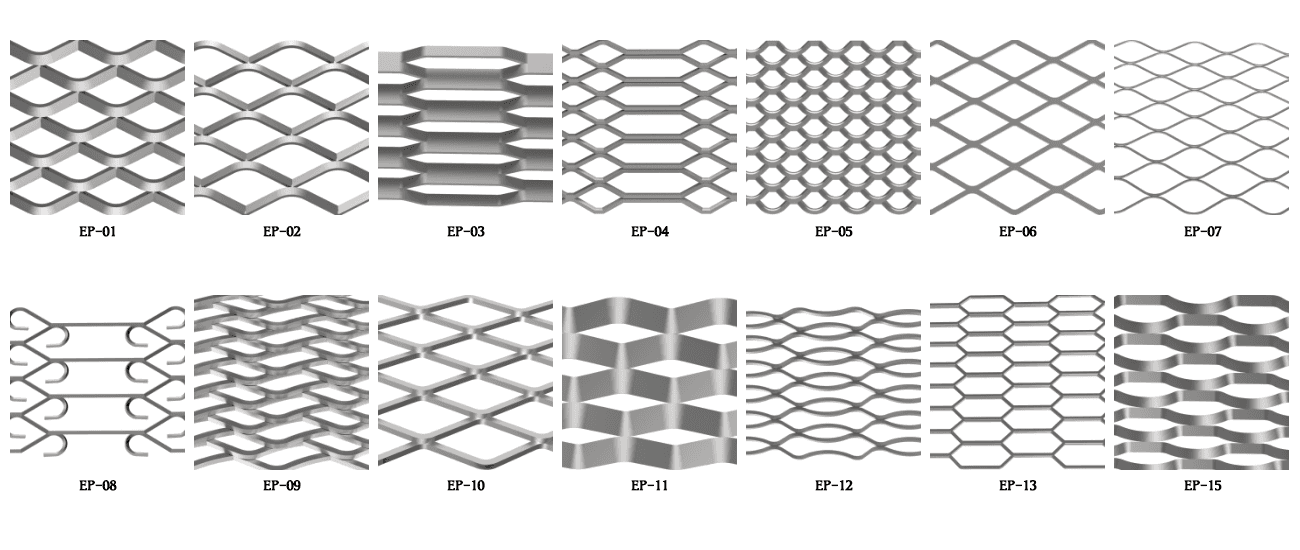

• Above mesh opening patterns are available in various specifications.

• Standard, anodic oxidation, powder coating or fluorine carbon spraying for your choice.

• Special ornaments designs like contrast color, mesh sizes variation or any other needs are available.

• Expected for standard products, a wide range of colors, materials and openings are available.

• Welcome to our pattern chamber to select more creative designs.
