Acoustics is the science concerned with the production, control, transmission, reception, and effects of sound. It has widely spread in various industries, including automotive, speakers, microphones, concert hall and other places.
We have the ability and experience to supply the acoustic products for your projects and production:
Loudspeaker/Bluetooth/speaker grilles
Sound attenuation material
Sound absorber / acoustic board
Noise barrier.

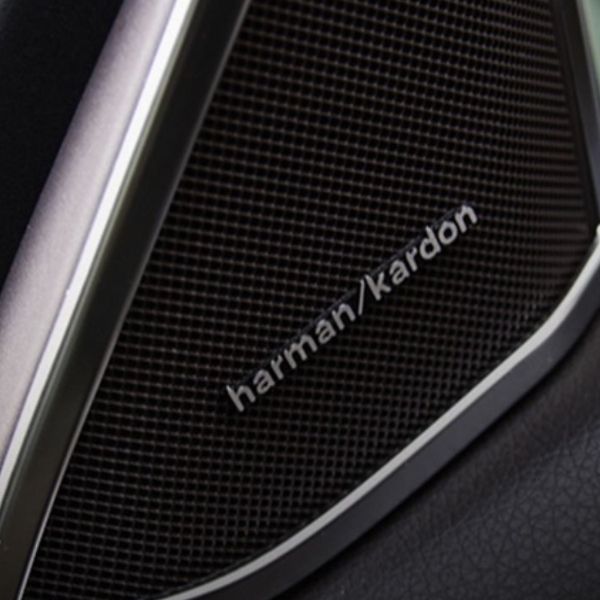

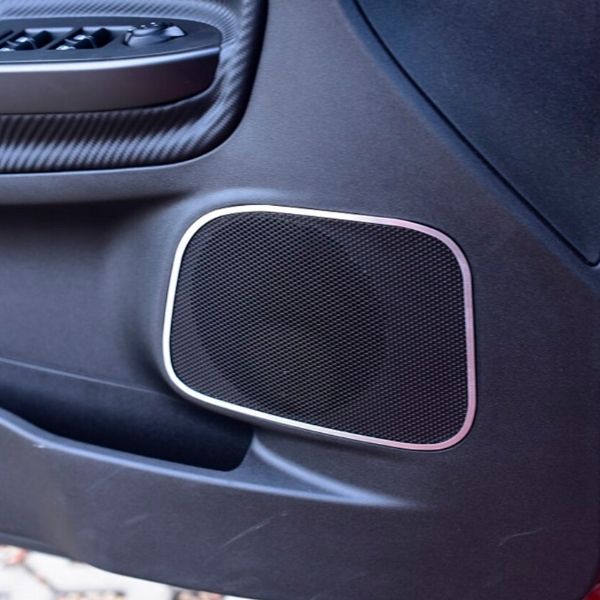

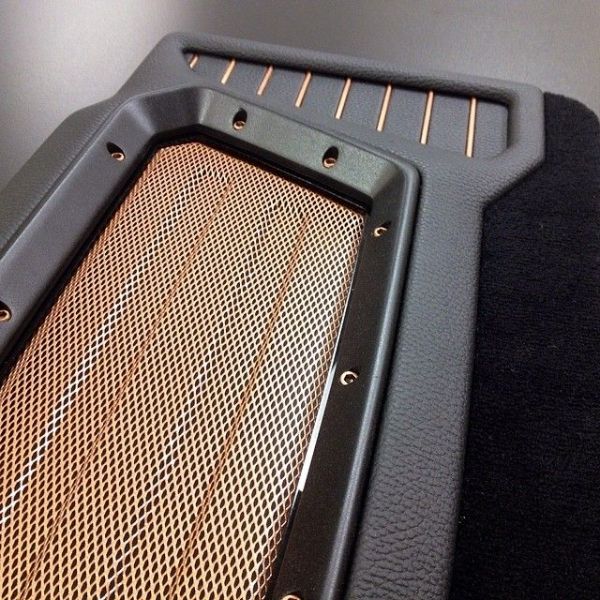

Nowadays, there are two major speaker grilles at the market: micro expanded metal (stretched metal meshes) and perforated metal meshes. The micro expanded metal is slit and expanded rather than punched, there is no waste material during production. This can save up to 50% material and costs for users and make the micro expanded metal a cost effective alternative to perforated metal in acoustic attenuation and speaker grilles.
Safe Guard. Protect speakers and driver elements from external impacts.
Durable and long life. Galvanized and PVC coated surface treatment can ensure the excellent corrosion and rust resistance performance and let your speaker grilles good as new.
Noise reduction. The speaker grill mesh will not affect the sound quality, but also reduce the surrounding noise and let the sound clearly passing and playing.
Acoustic attenuation. Unique design micro holes can help to attenuate

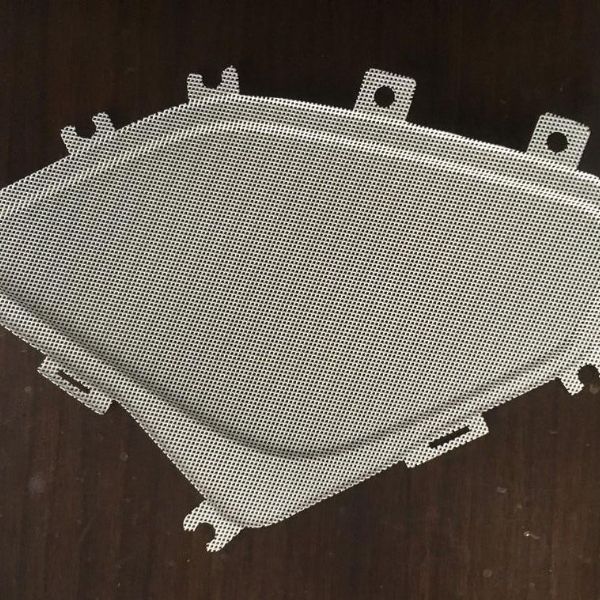

Perfectly compatible. We have the ability to custom shapes of speaker grilles and sound attenuation panels to match your acoustic equipment.
Tailored made. Except for the shapes, we can custom your logos and other important information on the mesh and panels to spread your brands better.
Material: DC01, SPCC, SPHC, etc.
Hole: 0.1–1.5 mm, special specifications are customized
Hole type: diamond, round and other customized
| Item | Thickness (mm) | Strand Width (mm) | SWD (mm) | LWD (mm) | Width (mm) |
|---|---|---|---|---|---|
| YSGM-01 | 0.5 | 0.5 | 1.5 | 2.5 | 150–500 |
| YSGM-02 | 0.5 | 0.5 | 1.7 | 2.8 | 150–500 |
| YSGM-03 | 0.5 | 0.5 | 2.1 | 3.0 | 150–600 |
| YSGM-04 | 0.5 | 0.5 | 3.0 | 4.5 | 150–600 |
In downtown area and heavy traffic area, the noise troubles civilians long term. There are several noise barrier products at the markets, such as perforated metal or louver type noise barriers. But they all need the extra sound absorbing materials to achieve the needed effects and some of the sound absorbing material is not environmentally friendly.
As we all know the sound resistance of surface material is inversely proportional to the open area. Thinner opening, better sound resistance. So, we recommend the micro expanded metal as the noise barrier.

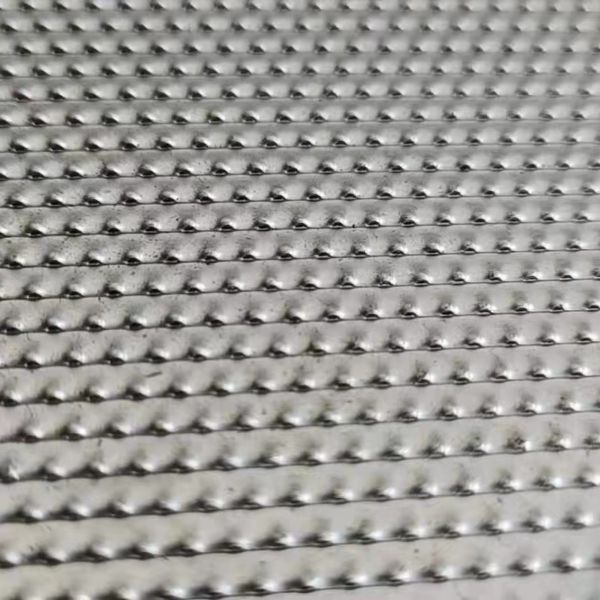

The noise barrier is evenly distributed with raised pyramid and oval tiny holes. When the noise contact with the surface of noise barrier, most of the noise are reflected and attenuated by the raised pyramid. And the rest noise/sound are penetrated through numerous tiny holes and long passing distance. At last, most of the noise/sound are reduced. Thus, it can achieve better noise reduction and sound absorption performance and it is more environmentally friendly.
The noise barrier is evenly distributed with raised pyramid and oval tiny holes. When the noise contact with the surface of noise barrier, most of the noise are reflected and attenuated by the raised pyramid. And the rest noise/sound are penetrated through numerous tiny holes and long passing distance. At last, most of the noise/sound are reduced. Thus, it can achieve better noise reduction and sound absorption performance and it is more environmentally friendly.
Material: aluminum alloy steel plate.
Surface treatment: PVDF coating.
Thickness: 0.8–1.2 mm
Opening size: ≤ 1.0 mm.
Opening area: ≤ 5%.
Width: 600–900 mm
Sound reduction: ≥ 30 dB
NCR:
≥ 0.7, Width: 60–75 mm
≥ 0.75, Width: 90 mm
Sound absorption coefficient
≥ 0.95 at 1000 Hz frequency
≥ 0.65 under water spraying condition
≥ 0.65 under dust spraying condition
Tensile load ≥ 1305 N
Fire resistance grade: A.
Noise Barrier. Highway, railway, light rail, indoor and outdoor large units.
Acoustic board. Wall panel or ceiling panel of conference center, stadium, song and dance theater, terminal building, waiting building, etc.
Sound attenuation material. large pipe muffler and military silo and industrial manufacturing equipment.

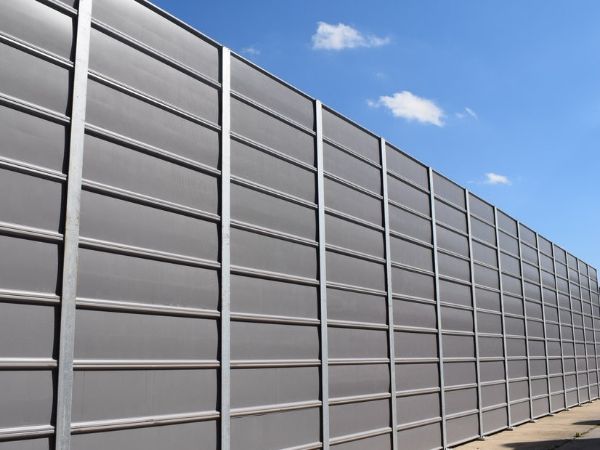

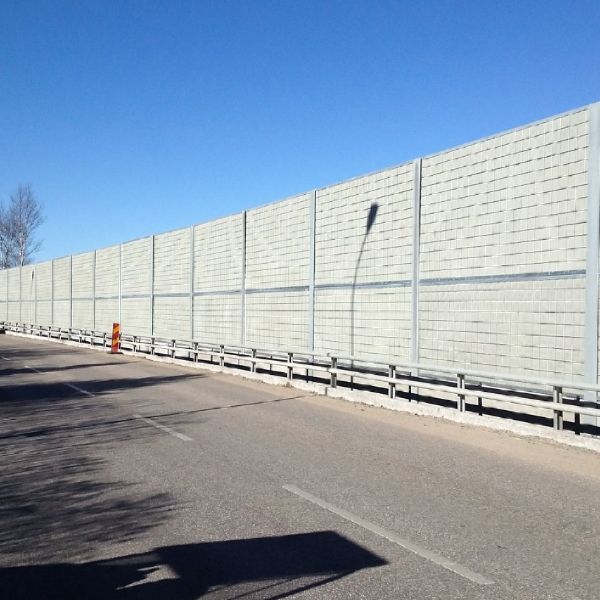

Highway noise barrier

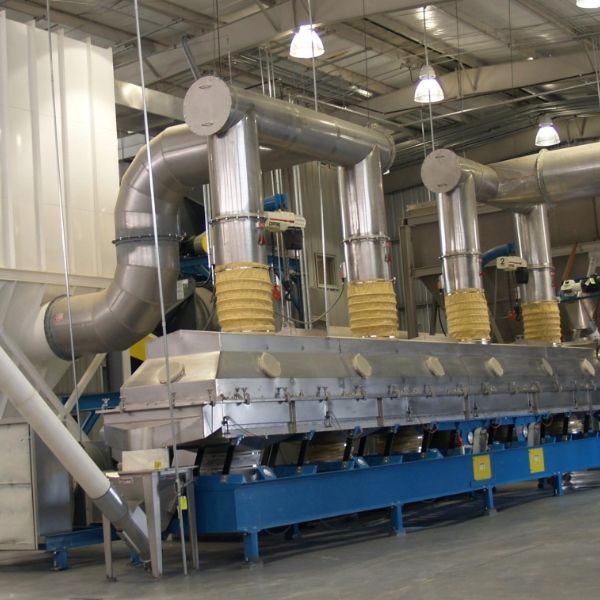

Sound attenuation

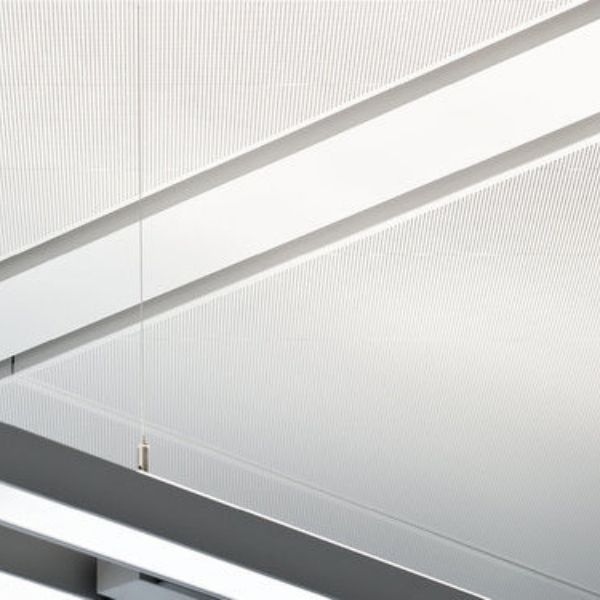

Acoustic board ceiling

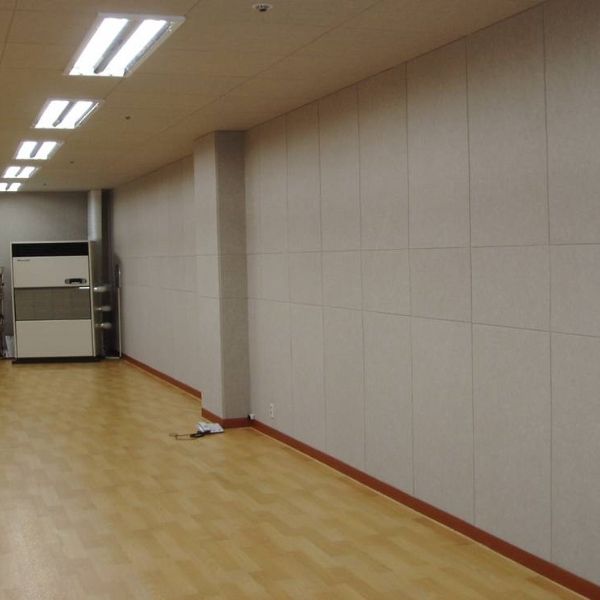

Acoustic board wall
