Platform Steel Grating Channels - Big Span Steel Grate Structure Panels

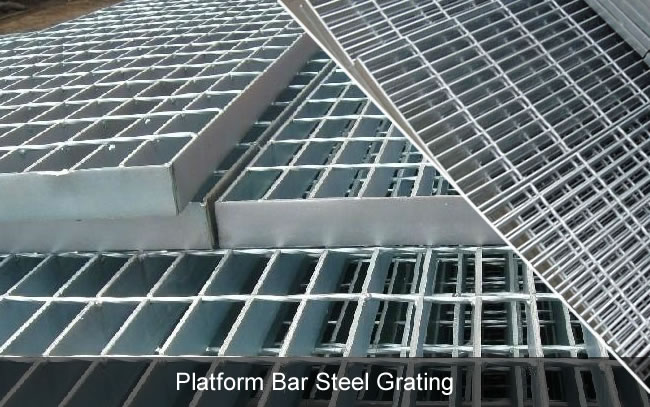

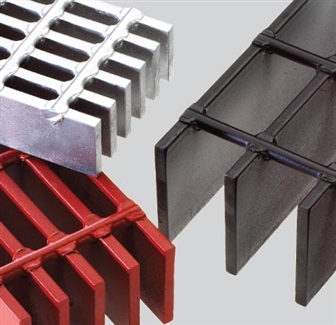

Platform Channel Gratings are made of aluminum or steel alloy bar structure panels with big bar spacing and strong ability of anti-side shocking. Can be supplied with checkered plate shielding, installation connectors and other accessories.

Platform Steel Gratings are new building materials used in construction of power plants, boilers, shipbuilding, petrochemical, chemical and general plant room, municipal construction and other industries. The steel bar grating platform structures enjoy good air and light ventilation, non-slip property, good bearing capacity, easy cleaning and installation.

Platform Gratings are universally used in most general industrial plants as well as commercial buildings, as walkways, platforms, safety barriers, drainage covers and ventilation grates. Welded Steel Bar Grating is the most popular of all grating platform types due to its strength, cost-efficient production and ease of installation.

Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.

Standard grating panels are 3 ft. wide x either 20 ft. or 24 ft. long. Panels are painted black; one end is untrimmed.

Popular Steel Grating Channels for Platforms

Welded Steel Grating Use For Workshop Platform And Walkway

Outdoor steel grating platforms and steel grill grates for workshop construction.



Steel Welded Grating Platform Flooring:
Can be supplied in Set with Fasteners shall comply with requirements of PIP STF 05530 “Grating details”.
Galvanized welded grating stair treads in set with fasteners shall comply with requirements of PIP STS 05120 p. 5.10 “Welded-Steel Bar Grating and Grating Stair Treads: ASTM A569/A569M, galvanized in accordance with ASTM A123 and NAAMM MBG 531”.

Specification for valuation of supply cost (for one set):
1. Welded grating with dimension L of bearing strip length and dimension B of transversal bars.

1.1 For arrangement of transversal bars at the distance of 40 mm:

1.1.1 L=1150 x B=1500, 800, 600, 400, 250 in quantity of 19,0 t.

1.1.2 L=700 x B=1300, 1000, 700 in quantity of 2,0 t.

1.1.3 L=250 x B=1300, 900, 800 in quantity of 0,2 t.

1.2 For the distance between transversal bars of 100 mm:

1.2.1 L=1600 x B=900, 800, 445, 415 in quantity of 1,3 t.

1.2.2 L=1000 x B=900, 600, 450 in quantity of 0,6 t.

1.2.3 L=800 x B=1000, 800, 700 in quantity of 0,14 t.

1.2.4 Grating of trapezoid form:

1.2.4.1 L=1600 x Bmax=1000, 900 in quantity of 1,0 t.

1.2.4.2 L=1000 x Bmax=1000, 900, 800, 700, 600, 500 in quantity of 0,5 t.

1.2.4.3 L=1400 x Bmax=1000, 900, 800, 500 in quantity of 0,5 t.

2. Welded grating stair treads with length of 1000 mm and width of 280 mm with arrangement of transversal bars at the distance of 40 mm in set with fasteners in quantity of 200 pcs., weight is 2,3 t.

Requirements to packing:
The supplier shall deliver goods in container, packing and with preservation which shall provide full protection of the goods from damages and corrosion when transporting by any kind of transport, taking into account repeated transshipments and transportation by sea, as well shall provide a safety of the goods and documentation at storage during 24 months from the moment of shipment under influence of tropical environmental conditions. The goods shall be packed so that it could not move in container when changing its position.

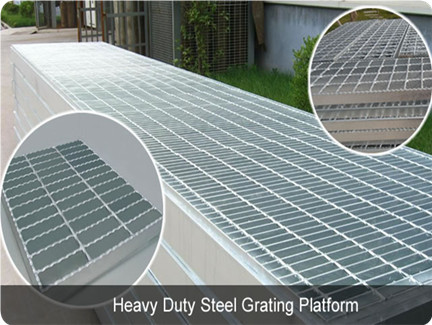

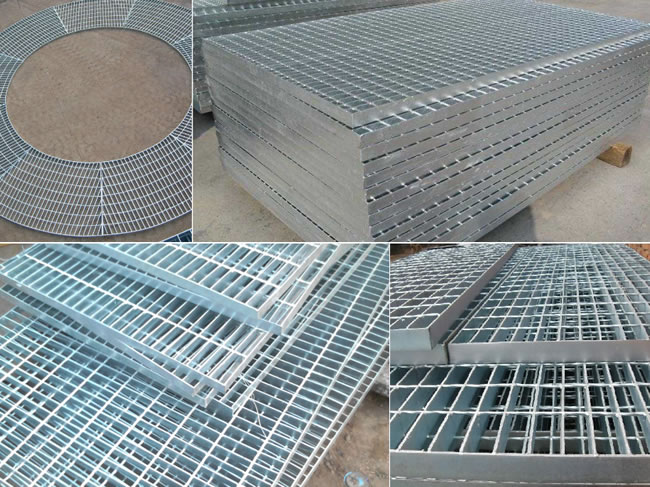

Heavy Duty Steel Grating Channel with Non Slip Surface


Hot Dipped Galvanized Steel Bar Grate Platform

Thick zinc coating layer gives more protection and excellent anti-corrosion resistance to this metal grating platform barriers.


Steel Grating Platform Flooring Decks

The grating type G325/40/100S is popular.
Bearing bar: serrated flat bar 32 x 5mm spaced at 40mm centers
Cross bar: square twisted rod 6mm spaced at 100mm centers
Panel size: 1005 x 5800mm

Features
1.High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.

2. Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.

3. Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.

Standard Grating Panels

Kingde supplies Standard Grating Panels of various types for fitted in applications. Custom sizes are also available upon request. Highly versatile grating structure is provided in more than fifty standard types and is readily cut or customised to any specific requirement.

Popular Standard Panels:

Mild Steel, Non Galvanized Open End Standard Bar Grating Panels

1. Standard grating panel, non-galvanized , open end ; 25x5 pitch 30mm (Plain) and cross bar (twisted bar 6 mm) pitch 100 mm
2. Standard grating panel, non-galvanized , open end ; 25x5 pitch 30mm (serrated) and cross bar (twisted bar 6 mm) pitch 100 mm
3. Standard grating panel, non-galvanized , open end ; 32x5 pitch 30mm (Plain) and cross bar (twisted bar 6 mm) pitch 100 mm
4. Standard grating panel, non-galvanized , open end ; 32x5 pitch 30mm (serrated) and cross bar (twisted bar 6 mm) pitch 100 mm

Electro-forged Bar Grating Panel Specification (Standard Panel)

Flooring and Platform Standard 20mm Steel Grating Panel
Platform floor grating   is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.

Standard Aluminium Grating Panel

6 mm twisted squire cross bar, 30*100, 6 x 905 mtr, Aluminum.

25 x 3 mm, 25 x 4 mm, 25 x 5 mm, 30 x 3 mm, 30 x 4 mm, 30 *5mm, 40 *4 mm, 40 x 5 mm, 50 x 4 mm, 50 x 5 mm.

Hot Dipped Galvanized Standard Steel Grates

Steel Grating Trench Drain Covers

Trench Drain Cover Gratings are steel lattice panels formed with simple lines, secured with hinged lid and connection. Ideal replacement drainage covers for conventional cast iron materials. Suitable for light type and large span heavy loading environment. Widely used in sewage treatment system in urban roads, squares, gardens, docks, airports, parking lots, roads, railways, industrial engineering and other types of industrial buildings.

Features:
Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.

Popular Trench Cover and Draining Covering Gratings:

Heavy Duty Steel Plate Grating Trench Cover

Heavy Duty Steel Plate Grating Trench Covers are anti-corrosive, resisting to acid and alkali. Light weight, great load-bearing capacity, anti-slip and safe, easy installation, economical of materials, sturdy and durable, good ventilation, easy to clean and attractive appearance.

304 Stainless Steel Wedge Wire Shower Line Drain Cover Grate

Specifications of the Stainless Steel Linear Drain Covers:
The wedge wire grate is composed of two parts, one is the grate panel, the other is trough/ channel.
Details of the wedge wire grate :
Material: ss 304
Wedge wire: 3x4.2mm, 3.2mm spacing
Supporting wire: 3x6mm, 25mm spacing
Frame: 22.8x5mm
Width: 63mm, 75mm, 98mm, 100mm
Length: 100mm, 200mm, 500mm, 1000mm etc.
Details of the Trough/ Channel:
Material: ss 304
Plate thickness: 1.2mm
Width: 70mm or 100mm
Length: 300mm or 500mm or 800mm or 1000mm etc.
Outlet: horizontal, with deodorization device, 40mm diameter
Frame: with flange, which is have a better function of waterproof.
We can also customize it according to customers' drawing.



Serrated Metal Slot Drainage Cover Steel Grating

Serrated slot grating covers are safe, self-cleaning, skid-resistant and economical.
Serrated top surface adds extra skid resistance for special requirements.
Welded steel covering grates are the most widely used for their strength and ease of installation and are
universally used in most industrial and commercial applications.



Galvanized Drain Cover Steel Grating




Stainless Steel Floor Drain Grate, Drain Cover
Material:
Stainless Steel Plate, galvanized plate

Application:
Flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, etc.



Outdoor Drain Cover Bar Grating

Material: stainless steel/ carbon steel

Surface treatment : Hot dip galvanized, cold galvanized, spray painting, rust-proof oil, not processing

Steel bar grating made of carbon steel hot galvanizing and stainless grates can prevent oxidation. Suitable for ventilation, lighting, non-slip,
